LASER 20
Fun for the growing rider
Manufacturer’s Suggested Retail Price excludes shipping costs, dealer assembly/prep, taxes or import duties.

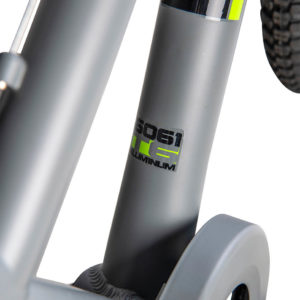

LIGHTWEIGHT ALLOY FRAME
Extra weight is the enemy of any bike. This is especially true for youth bikes, when the riders themselves are relatively light-weight. It’s tough to beat the cost-to-weight ratio of aluminum, which is why Laser 20 features a lightweight 6061 aluminum frame. This keeps the overall weight down, making the bike much more fun and easy to ride.
YOUTH-SPECIFIC BRAKE LEVER
Being able to slow down is critical for rider safety, and Laser 20 features both a coaster brake and hand brake. The hand brake lever features a short reach and easy pull, requiring minimal effort for those with small hands.
FULL-COVERAGE CHAIN GUARD
A full-coverage chain guard makes sure things that shouldn’t get caught between the chain and the chainring, don’t. Like pants and small fingers.
KICKSTAND INCLUDED
Good habits of bike care can be learned at a young age, especially with a first bike. Laser 20 includes a kickstand to help kids become mindful of how their bike is left when it’s not in use.
BELL INCLUDED
The basics of bike safety can be, and should be learned at a young age, which is why Laser 20 includes a handlebar-mounted bell.
36-SPOKE WHEELS
We know these bikes get put through the wringer, which is why Laser 20 features sturdy, 36-spoke wheels built with 14G spokes.
Setting the stage for a lifetime of fun
Attention to detail isn’t reserved solely for our adult bikes. Laser 20 features the same thoughtful design and smart spec choices, yielding a solid foundation for a lifetime of two-wheeled enjoyment.
LASER 20
WAS: $359.95
SALE PRICE: $299.95
Purchase online now and pickup at your local bike shop!
- Lightweight 6061 aluminum MX-moto frame design
- Tubular unicrown fork, MX Hi-Ten, straight blades
- Alloy 36H black anodized rims, steel front and Hi-Stop coaster brake rear hubs
- CST Dirt Knobbie tires
- BMX high-impact resin pedals
- Alloy linear pull brake and Hi-stop coaster brake with youth specifc alloy lever

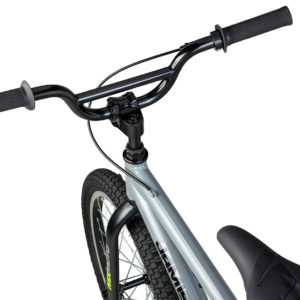

- BMX style handlebar with safety bell

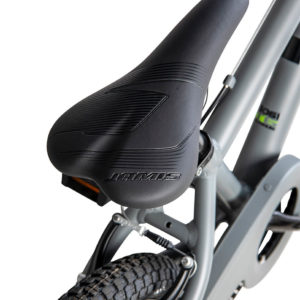

- Jamis BMX Jr. saddle
LASER 20 | LASER 20 |
---|---|
Frame | Lightweight 6061 aluminum MX-moto frame design, includes chainguard and kickstand |
Fork | Tubular unicrown, MX Hi-Ten, straight blades |
Headset | Standard threaded type, 22.2mm |
Wheels | Alloy 36H black anodized rims with brushed brake tracks, steel front and Hi-Stop coaster brake rear hubs, 14G black electroplated spokes |
Tires | CST Dirt Knobbies, 20 x 2.125” |
Derailleurs | N/A |
Shift levers | N/A |
Chain | KMC C410 |
Cassette | N/A |
Crankset | Cold-forged steel, electro-plated black finish, 4 1/2” arms, 36T chainring |
BB Set | OPC bearing type, VP-B35 |
Pedals | BMX high-impact resin pedals |
Brakeset | Alloy linear pull type and Hi-stop coaster brake (both rear only) with youth specifc alloy lever |
Handlebar | BMX style with safety bell |
Stem | BMX alloy with front facing removable cap, 150mm quill |
Grips | Kraton with flange |
Seat Post | Pillar, electro-plated black finish, 27.2 x 250mm with 31.8mm alloy clamp |
Saddle | Jamis BMX Jr. |
Sizes | 10” |
Color | Cosmo Blue or Smoke |
Weight | 24.25 lbs |
MODEL | SIZE | TT EFFECTIVE | HT ANGLE | ST ANGLE | CHAINSTAY | WHEELBASE | FORK RAKE | BB HEIGHT | HEADTUBE | STANDOVER |
---|---|---|---|---|---|---|---|---|---|---|
XR26 | 13″ | 20.90 / 531 | 70.5° | 74° | 16.73 / 425 | 40.27 / 1023 | 1.77 / 45 | 11.89 / 302 | 4.13 / 105 | 27.05 / 687 |
XR26 | 15″ | 21.42 / 544 | 70.5° | 74° | 16.73 / 425 | 40.83 / 1037 | 1.77 / 45 | 11.89 / 302 | 4.72 / 120 | 28.27 / 718 |
XR26 | 12″ S/O | 20.51 / 521 | 70.5° | 74° | 16.93 / 430 | 39.88 / 1013 | 1.77 / 45 | 11.89 / 302 | 4.13 / 105 | 24.76 / 629 |
XR26 | 14″ S/O | 20.75 / 527 | 70° | 73° | 16.93 / 430 | 39.96 / 1015 | 1.77 / 45 | 11.89 / 302 | 4.92 / 125 | 25.27 / 642 |
KOMODO 24 | 12″ B | 20.16 / 512 | 68° | 73° | 16.54 / 420 | 39.53 / 1004 | 1.77 / 45 | 10.61 / 269.5 | 4.33 / 110 | 23.43 / 595 |
X.24 DISC | 12” B | 20.39 / 518 | 69° | 72° | 16.14 / 410 | 38.58 / 980 | 1.57 / 40 | 10.63 / 270 | 3.94 / 100 | 22.80 / 579 |
XR24 | 12” B | 20.59 / 523 | 70° | 72° | 16.14 / 410 | 38.62 / 981 | 1.77 / 45 | 10.28 / 261 | 3.94 / 100 | 22.09 / 561 |
XR20 | 11″ B | 17.91 / 455 | 70° | 70° | 15.16 / 385 | 34.72 / 882 | 1.77 / 45 | 9.45 / 240 | 3.54 / 90 | 20.32 / 516 |
CAPRI 24 | 12″ G | 19.45 / 494 | 71° | 70° | 16.73 / 425 | 37.68 / 957 | 1.97 / 50 | 11.02 / 280 | 4.72 / 120 | 21.97 / 558 |
LASER 20 | 10″ B | 17.91 / 455 | 70° | 70° | 15.16 / 385 | 34.92 / 887 | 1.97 / 50 | 9.41 / 239 | 3.54 / 90 | 20.35 / 517 |
STARLITE 20 | 10″ G | 18.23 / 463 | 71° | 70° | 15.16 / 385 | 34.92 / 887 | 1.97 / 50 | 9.41 / 239 | 4.72 / 120 | 18.66 / 474 |
LASER 16 | 8″ B | 15.55 / 395 | 70° | 70° | 13.23 / 336 | 30.24 / 768 | 1.38 / 35 | 7.99 / 203 | 3.35 / 85 | 16.65 / 423 |
MISS DAISY 16 | 8″ G | 15.83 / 402 | 71° | 70° | 13.23 / 336 | 30.24 / 768 | 1.38 / 35 | 7.99 / 203 | 4.33 / 110 | 15.31 / 389 |
CRITTER | 8″ B | 12.91 / 328 | 68° | 68° | 9.72 / 247 | 22.91 / 582 | 0.99 / 25 | —- | 2.17 / 55 | 8.62 / 219 |
