XR24

Lightweight performance

Share on facebook
Share on twitter
Share on email

Manufacturer’s Suggested Retail Price excludes shipping costs, dealer assembly/prep, taxes or import duties.

Jamis XR24 Ano Black
Jamis XR24 Ano Black
Jamis Bullseye

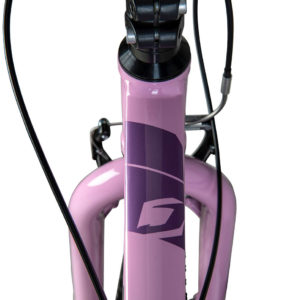

LIGHTWEIGHT ALLOY FRAME

Extra weight is the enemy of any bike. This is especially true for youth bikes, when the riders themselves are relatively light-weight. It’s tough to beat the cost-to-weight ratio of aluminum, which is why XR24 features a lightweight 6061 aluminum frame. This keeps the overall weight down, making the bike much more fun and easy to ride. XR24 also features a low standover height, which makes getting on and off the bike nice and easy.

Jamis Bullseye

SINGLE CHAINRING DRIVETRAIN

XR24 keeps it simple with a single-chainring drivetrain. A 32t chainring combined with a 14-28t freewheel provide enough gearing to go anywhere without the need for an extra shifter, cabling and derailleur.

Jamis Bullseye

YOUTH-SPECIFIC BRAKE LEVERS

Being able to slow down is critical for rider safety, which is why we spec XR24 with youth-specific brake levers. The levers feature a short reach and easy pull, requiring minimal effort for those with small hands.

Jamis Bullseye

ANO BLACK COMPONENTS

A well-loved bike is a well-used bike, and a well-used bike is bound to show scratches and dings. Many parts on XR24 feature an ano black finish, which helps conceal minor damage.

Jamis Bullseye

SEALED CARTRIDGE BOTTOM BRACKET

Our kids bikes are designed to stand the test of time, which is why we spec most with sealed cartridge bottom brackets. This design will help keep the pedals turning smoothly for years.

Jamis Bullseye

36-SPOKE WHEELS

We know these bikes get put through the wringer, which is why XR24 features sturdy, 36-spoke wheels built with 14G spokes. The rims and hubs are aluminum, keeping weight down.

Simple, functional, reliable.

Sometimes less is more. With a lightweight aluminum frame, single-chainring drivetrain, and a rigid no-nonsense fork XR24 is just about everything a kid needs for two-wheeled adventures.

Jamis XR24 Ano Black
Ano Black
Jamis XR24 Ninja Green
Ninja Green
Jamis XR24 Violet Powder
Violet Powder
Jamis XR24 Sky Blue
Sky Blue

XR24

MSRP: $399.95

XR24XR24
Frame6061 aluminum main tubes, zero-stack head tube, over- sized stays, replaceable derailleur hanger
ForkUnicrown, hi-tensile steel, 28.6 steerer
HeadsetZero-stack internal cup threadless, 15mm cone spacer
WheelsAlloy 36H black anodized rims with brushed brake tracks, alloy MTB hubs with nutted axles, 14G nickel- plated spokes
TiresCST MTB Sport, 24 x 1.95”
DerailleursShimano TY300 rear
Shift leversShimano RevoShift 35, 7-speed
ChainKMC Z51
CassetteShimano TZ500 freewheel, 14-28, 7-speed
CranksetForged alloy crank, 152mm, 32T chainring and protective outer rock-ring
BB SetSealed cartridge
PedalsMTB platform, hi-impact resin
BrakesetAlloy linear pull type with Tektro youth specific levers
HandlebarMTB alloy riser, 6 ̊ sweep x 20mm rise x 580mm wide
StemMTB alloy threadless, 15 ̊ rise x 60mm extension
GripsKraton for Grip Shift
Seat PostAlloy micro-adjust, 27.2 x 300mm, with 31.8mm alloy clamp
SaddleJamis ATB Youth
Sizes12”
ColorAno Black, Ninja Green, Sky Blue, Violet Powder
Weight24.00 lbs


MODELSIZETT EFFECTIVEHT ANGLEST ANGLECHAINSTAYWHEELBASEFORK RAKEBB HEIGHTHEADTUBESTANDOVER
XR2613″20.90 / 53170.5°74°16.73 / 42540.27 / 10231.77 / 4511.89 / 3024.13 / 10527.05 / 687
XR2615″21.42 / 54470.5°74°16.73 / 42540.83 / 10371.77 / 4511.89 / 3024.72 / 12028.27 / 718
XR2612″ S/O20.51 / 52170.5°74°16.93 / 43039.88 / 10131.77 / 4511.89 / 3024.13 / 10524.76 / 629
XR2614″ S/O20.75 / 52770°73°16.93 / 43039.96 / 10151.77 / 4511.89 / 3024.92 / 12525.27 / 642
KOMODO 2412″ B20.16 / 51268°73°16.54 / 42039.53 / 10041.77 / 4510.61 / 269.54.33 / 11023.43 / 595
X.24 DISC12” B20.39 / 51869°72°16.14 / 41038.58 / 9801.57 / 4010.63 / 2703.94 / 10022.80 / 579
XR2412” B20.59 / 52370°72°16.14 / 41038.62 / 9811.77 / 4510.28 / 2613.94 / 10022.09 / 561
XR2011″ B17.91 / 45570°70°15.16 / 38534.72 / 8821.77 / 459.45 / 2403.54 / 9020.32 / 516
CAPRI 2412″ G19.45 / 49471°70°16.73 / 42537.68 / 9571.97 / 5011.02 / 2804.72 / 12021.97 / 558
LASER 2010″ B17.91 / 45570°70°15.16 / 38534.92 / 8871.97 / 509.41 / 2393.54 / 9020.35 / 517
STARLITE 2010″ G18.23 / 46371°70°15.16 / 38534.92 / 8871.97 / 509.41 / 2394.72 / 12018.66 / 474
LASER 168″ B15.55 / 39570°70°13.23 / 33630.24 / 7681.38 / 357.99 / 2033.35 / 8516.65 / 423
MISS DAISY 168″ G15.83 / 40271°70°13.23 / 33630.24 / 7681.38 / 357.99 / 2034.33 / 11015.31 / 389
CRITTER8″ B12.91 / 32868°68°9.72 / 24722.91 / 5820.99 / 25—-2.17 / 558.62 / 219
