KROMO
STEEL | DIRT JUMP
Manufacturer’s Suggested Retail Price excludes shipping costs, dealer assembly/prep, taxes or import duties.
4130 STEEL FRAME
Dirt jumpers and steel frames go together like tacos and Tuesdays. Our new Kromo sticks to this tried-and-true recipe by using 4130 steel as a frame material for an optimal blend of compliance and performance.
FRONT BRAKE COMPATIBLE
Kromo includes only a rear brake, but a Novatec 6-bolt front hub and post mounts on the Manitou fork make it easy to add a front brake if necessary.
FRAME FEATURES
Kromo’s frame features a 44mm head tube to fit a variety of steerer tubes and headset types. It also offers fully external cable routing, integrated seatpost clamp, and horizontal dropouts.

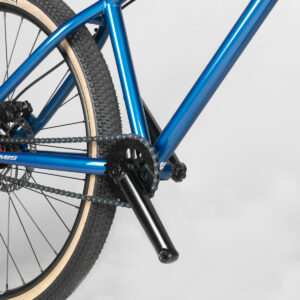

3-PIECE CHROMOLY CRANKS
Samox chromoly 3-piece cranks with 28t ring can handle all kinds of abuse, from endless pump track laps and street sessions to those occasional not-so-perfect landings.
MANITOU CIRCUS COMP
Manitou Circus Comp fork with 100mm travel, tapered steerer and 20mm axle takes care of suspension duties. ABS+ compression damping offers a big range of usable tuning to dial in stiffness.
TEKTRO BRAKE
Tektro M275 hydraulic rear brake with a 160mm rotor helps dial in speed. Cable routing is 100% external to make brake swaps or maintenance a breeze.
KROMO
MSRP: $1199.95
Purchase online now and pickup at your local bike shop!
- 4130 chromoly steel frame
- Manitou Circus Comp fork
- WTB SX25 rims, Novatec sealed bearing hubs
- Tektro M275 hydraulic disc brake
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
| MODEL | KROMO |
|---|---|
| Frame | 4130 chromoly, 44mm head tube, ISCG05 chainguide mount, horizontal dropouts |
| Fork | Manitou Circus Comp, Coil Spring, ABS+ Compression Damping, TPS rebound damping, 32mm stanchions, 20x110mm axle, 100mm travel |
| Headset | FSA Orbit |
| Wheels | WTB SX25 rims, 32H, Novatec DH61SB 20x110mm front & D256SB rear sealed bearing hubs |
| Tires | Vee XCV 26 x 2.25” |
| Derailleurs | N/A |
| Shift levers | N/A |
| Chain | KMC Z1 chain |
| Cassette | 14T Freewheel |
| Crankset | Samox chromoly 3pc. 170mm cranks, 28T chainring |
| BB Set | Samox |
| Pedals | Alloy Flat |
| Brakeset | Tektro M275 hydraulic disc, 160mm rear rotor |
| Handlebar | Jamis Alloy 31.8 x 780mm |
| Stem | Jamis Alloy 45mm stem |
| Grips | Jamis Lock-On |
| Seat Post | Jamis Alloy 27.2 x 250mm post |
| Saddle | Jamis Dirt Jump saddle |
| Sizes | Short, Long |
| Color | Mash or Midnight Blue |
| Weight | 30.5 lbs |
| MODEL | SIZE | TT EFFECTIVE | HT ANGLE | ST ANGLE | CHAINSTAY | WHEELBASE | BB DROP | HEADTUBE | STANDOVER | STACK | REACH |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KROMO | Short | 22.8 / 580 | 69° | 72° | 15.75 / 400 | 41.3 / 1050 | .77 / 19.5 | 4.5 / 115 | 28 / 712 | 22.5 / 571 | 15.5 / 395 |
| KROMO | Long | 23.8 / 605 | 69° | 72° | 15.75 / 400 | 42.3/ 1075 | .77 / 19.5 | 4.5 / 115 | 28 / 712 | 22.5 / 571 | 16.5 / 420 |
