HIGHPOINT
HARDTAIL 29 TRAIL BIKES
Manufacturer’s Suggested Retail Price excludes shipping costs, dealer assembly/prep, taxes or import duties.
FRAME MATERIALS
Lightweight and strong triple-butted 6061 series aluminum tubing, featuring over-sized & tapered tubing for increased frame stiffness.
TAPERED HEAD TUBE
Riding fast with control requires steering precision, which starts with the front of the bike. Stiffening this area results in less wheel deflection, more wheel control. A full 1.5” head tube and steerer would achieve this, but would add unnecessary weight and bulk, and limit stem choices. But a tapered 1 1 /8” to 1 1 /2” head tube serves up a significant increase in rough terrain tracking and stability without much of a weight penalty compared to standard 1 1 /8” systems.
WHY THRU AXLES?
The increase in stiffness of a 15mm fork axle improves steering & handling significantly. It also puts less stress on the fork’s internals, improving fork durability and performance. The hub drop outs provide a self centering feature for the wheel for fast, easy installation.
TUBELESS
Benefits of a tubeless set-up are reduced rotating weight and the ability to use lower inflation pressures for greater traction without the risk of pinch flats. WTB TCS rims feature a tubeless UST “On-Ramp” profile providing a consistent fit between the rim and the tire for easy installation and inflation.
PEDALING PLATFORM
The aluminum frame of the Highpoint is beefed up to include a larger 34.9mm seat tube, which allows us to spec an over-sized 31.6mm seat post. The larger diameter post flexes less, providing a firmer pedaling platform.
ONE AND ONLY
The 1x drivetrain philosophy is to make it simpler, lighter and more durable. Specific chainring tooth profiles, clutch-type rear derailleurs and wide range cassettes are developed for an incredibly wide gear range and maximum control without the need to chain tensioning devices or guides.
TOP TUBE CABLE ROUTING
Running the cables up under the top tube keeps cables and housing out of the muck for more precise and reliable shifting performance.
DUAL WATERBOTTLE MOUNTS
Most of our Highpoint sizes offer two water bottle mounts located inside the main frame. This provides excellent hydration capacity in an easily accessible position.
TRUE ALL-AROUNDER
Designed with geometry like our Komodo, the Highpoint® is ready to tackle all aspects of trail riding. With a 5” travel fork with thru axle and tubeless rims, the Highpoint performs as a true all-arounder. It’s a fact: larger wheels roll over obstacles more easily than smaller wheels. Stuff like rocks, logs, and stutter bumps. In other words, they’ll roll easier and faster on the trails you ride.
HIGHPOINT A1
MSRP: $1299.95
- 6061 triple-butted aluminum
- Rock Shox Judy Silver TK 29”, Solo Air compression, external rebound, Turn Key lockout, 120mm travel
- WTB STX i23 TCS tubeless 29” rims, 32H, alloy disc hubs
- Shimano Deore Shadow Plus rear, 11-speed
- Shimano Deore, 32T Crank
- Shimano MT200 hydraulic disc brakes
- Jamis XC alloy handlebar and stem
- Selle Royal Vivo Saddle
Purchase online now and pickup at your local bike shop!
FRAME MATERIALS
Highpoint features lightweight and strong triple-butted 6061 series aluminum tubing, featuring over-sized & tapered tubing for increased frame stiffness.

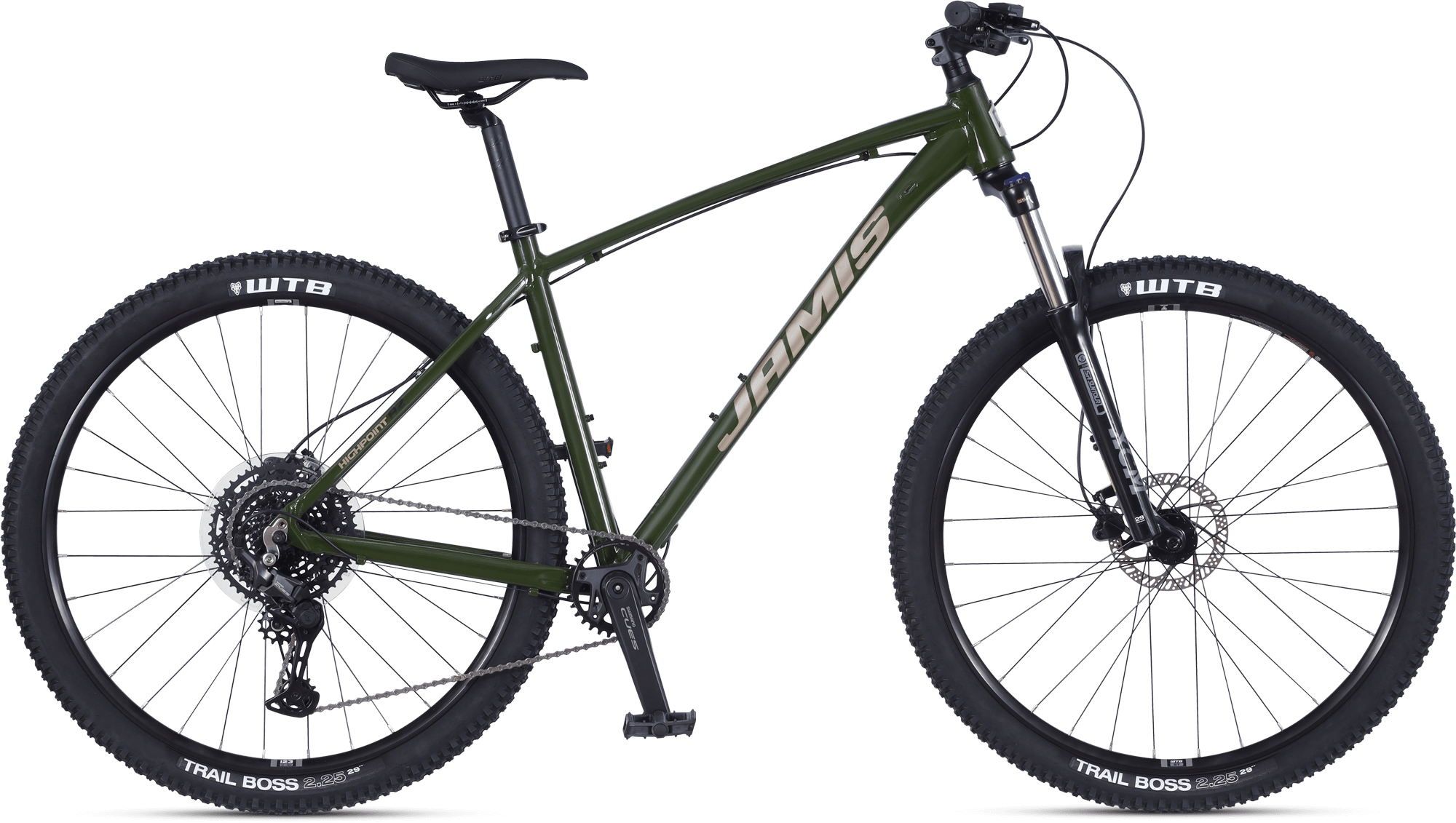

HIGHPOINT A2
MSRP: $999.95
- 6061 triple-butted aluminum
- SR Suntour XCM 32 HLO 29”, coil spring, hydraulic speed lock out adjust, external preload adjustor
- WTB STX i23 TCS tubeless 29” rims, 32H, alloy disc hubs
- Shimano Deore Shadow Plus rear, 10-speed
- Shimano Deore, 32T Crank
- Tektro M275 hydraulic disc brakes
- Jamis XC alloy handlebar and stem
- Selle Royal Vivo Saddle
Purchase online now and pickup at your local bike shop!
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
HIGHPOINT | A1 | A2 |
---|---|---|
Frame | 6061triple-butted aluminum main tubes, 1.5 – 1 1/8” tapered head tube, over-sized stays, replaceable derailleur hanger | 6061triple-butted aluminum main tubes, 1.5 – 1 1/8” tapered head tube, over-sized stays, replaceable derailleur hanger |
Fork | Rock Shox Judy Silver TK 29”, Solo Air compression, external rebound, Turn Key lockout, 30mm steel stanchions, magnesium lowers, 15x110mm axle, 120mm travel, 51mm rake | SR Suntour XCM 32 HLO 29”, coil spring, hydraulic speed lock out adjust, external preload adjustor, 32mm stanchions, aluminum lowers, 15x100mm axle, 120mm travel, 51mm rake |
Headset | Zero-stack internal cup, 15mm cone spacer | Zero-stack internal cup, 15mm cone spacer |
Wheels | WTB STX i23 TCS tubeless 29” rims, 32H, alloy disc hubs, 14G black electroplated spokes | WTB STX i23 TCS tubeless 29” rims, 32H, alloy disc hubs, 14G black electroplated spokes |
Tires | WTB Trailboss, 29 x 2.25” | WTB Trailboss, 29 x 2.25” |
Derailleurs | Shimano Deore Shadow Plus rear, 11-speed | Shimano Deore Shadow Plus rear, 10-speed |
Shift levers | Shimano Deore, 1×11-speed | Shimano Deore, 1×10-speed |
Chain | KMC X11, 11-speed | KMC X10, 10-speed |
Cassette | Shimano HG5100, 11-speed, 11-51T | Shimano M4100, 10-speed, 11-42T |
Crankset | Shimano Deore, 32T | Shimano Deore, 32T |
BB Set | Shimano BSA | Shimano BSA |
Pedals | MTB platform, hi-impact resin | MTB platform, hi-impact resin |
Brakeset | Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors | Tektro M275 hydraulic disc, 160mm rotors |
Handlebar | Jamis XC alloy riser, 31.8 x 20mm rise x 740mm | Jamis XC alloy riser, 31.8 x 20mm rise x 740mm |
Stem | Jamis XC alloy threadless, 31.8 x 60mm | Jamis XC alloy threadless, 31.8 x 60mm |
Grips | Kraton | Kraton |
Seat Post | Jamis alloy micro-adjust, 31.6 x 400mm | Jamis alloy micro-adjust, 31.6 x 400mm |
Saddle | Selle Royal Vivo | Selle Royal Vivo |
Sizes | 15”, 17”, 19”, 21” | 15”, 17”, 19”, 21” |
Color | Riptide | Monterey Grey |
Weight | 30.75 lbs | 32.75 lbs |
MODEL | SIZE | TT EFFECTIVE | HT ANGLE | ST ANGLE | CHAINSTAY | WHEELBASE | BB DROP | HEADTUBE | STANDOVER | STACK | REACH |
---|---|---|---|---|---|---|---|---|---|---|---|
A1, A2 | S/15.5″ | 23.0 / 585 | 68° | 74° | 17.3 / 440 | 44 / 1126 | 2.4 / 60 | 3.5 / 90 | 30.0 / 763 | 25.0 / 635 | 15.9 / 403 |
A1, A2 | M/17″ | 24.0 / 610 | 68° | 74° | 17.3 / 440 | 45 / 1152 | 2.4 / 60 | 3.9 / 100 | 31.5 / 799 | 25.4 / 644 | 16.7 / 425 |
A1, A2 | L/19″ | 25.0 / 635 | 68° | 74° | 17.3 / 440 | 46 / 1178 | 2.4 / 60 | 4.3 / 110 | 32.9 / 836 | 25.7 / 653 | 17.6 / 447 |
A1, A2 | XL/21″ | 26.0 / 660 | 68° | 74° | 17.3 / 440 | 47 / 1204 | 2.4 / 60 | 4.7 / 120 | 34.2 / 868 | 26.1 / 663 | 18.5 / 470 |
