Jamis Portal C1 Sandstone

130MM 29 TRAIL BIKES

Manufacturer’s Suggested Retail Price excludes shipping costs, dealer assembly/prep, taxes or import duties.

Jamis Portal C1 Sandstone
Jamis Bullseye

FRAME MATERIALS

Lightweight and strong High Modulus carbon fiber or triple-butted 6061 series aluminum tubing, featuring custom over-sized & tapered tubing for increased frame stiffness and durability.

Jamis Bullseye

ENDURO® BEARINGS

USA made Enduro® Max sealed bearings sustain 40% more load capacity than standard radial bearings & provide more lateral support for the multiple forces associated with mountain bike pivots. MAX bearings use CRC Marine Grease that will not wash out or breakdown under extreme circumstances.

Jamis Bullseye

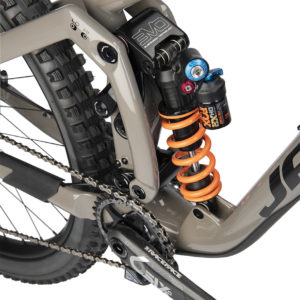

10MM SHOCK HARDWARE

Our 10mm shock hardware is NOT the standard from our rear shock suppliers. We have to pay more for it and our production lead times are usually increased because we specify it. But the increase in lateral and torsional stiffness for our frames and the rear shock durability and performance is worth every extra dollar.

Jamis Bullseye

ONE AND ONLY

The 1x drivetrain philosophy is to make it simpler, lighter and more durable. Specific  chainring tooth profiles, clutch-type rear derailleurs and wide range cassettes are developed for an incredibly wide gear range and maximum control without the need to chain tensioning devices or guides.

Jamis Bullseye

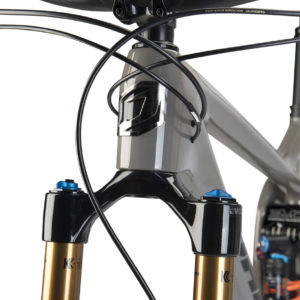

TAPERED HEADTUBE

Riding fast with control requires steering precision, which starts with the front of the bike. Stiffening this area results in less wheel deflection, more wheel control. A full 1.5” head tube and steerer would achieve this, but would add unnecessary weight and bulk, and limit stem choices. But a tapered 1 1 /8” to 1 1 /2” head tube serves up a significant increase in rough terrain tracking and stability without much of a weight penalty compared to standard 1 1 /8” systems.

Jamis Bullseye

WHY THRU-AXLES?

Securing the rear wheel to the frame by threading a 12mm axle into the rear drop-outs is not only safer, it’s stiffer.  The rear wheel tracks directly in line with the frame, for more precise handling, so you can go faster with more confidence. The increase in stiffness of a 15mm fork axle improves steering & handling significantly. It also puts less stress on the fork’s internals, improving fork durability and performance. The hub drop outs provide a self centering feature for the wheel for fast, easy installation.

Jamis Bullseye

SHORT CHAINSTAYS

The rear wheel tucks in with short chainstays. With a 12×148 rear hub, you’ve got a stiff and responsive rear end.

Jamis Bullseye

BALANCED GEOMETRY

Portal and Hardline both feature Balanced Geometry. The combination of these individual attributes produces a system which optimizes responsiveness and dynamic performance regardless of trail condition or type.

pinkbike-logo

"The construction is absolutely top notch..."

Jamis is all in with their 3VO project - to the degree that they chose a small, high-end manufacturer that caters to a hand-picked group of the world's most prestigious brands.

"More than meets the eye"

The Portal stays planted, rips, has the incredibly efficient 3VO suspension design and is overall a bike we would love to stay on...Simply put, this bike is up there with the best all-around trail bikes on the market today.

"Believe [most of] the hype."

The Portal pedals very well, with no lockout required. Ever. And as claimed, it was never overly concerned with how much sag I was running. There was no annoying pedal feedback and no noticeable brake jack...

"A unique approach to efficiency..."

The bike felt smooth and swoopy through blown-out berms and chunky rock gardens. On the climb up, I was really impressed with the climbing stiffness of the suspension—it felt super efficient...

Jamis Portal C1 Sandstone
Sandstone

PORTAL C1

MSRP: $9499.95

NOW $5999.95

Purchase online now and pickup at your local bike shop!

THREE VARIABLE OPTIMIZED.

1. INSTANT CENTER

With the 3VO system’s unique virtual pivot characteristics, we’re able to combine the efficiency of a hardtail with the proper support of precisely-controlled active suspension. This is how every full-suspension bike should ride.

Jamis® 3VO Instant Center Illustration
Jamis Portal C2 Winter Dusk
Winter Dusk

PORTAL C2

MSRP: $6999.95

NOW $4499.95

Purchase online now and pickup at your local bike shop!

Jamis Portal C3 Oxblood
Oxblood

PORTAL C3

MSRP: $5699.95

NOW $3699.95

Purchase online now and pickup at your local bike shop!

THREE VARIABLE OPTIMIZED.

2. AXLE PATH

A rear wheel that stays planted while charging through rough terrain is crucial to providing an intimate connection with the trail. 3VO’s initial rearward axle path allows the bike to be supple on small bumps and square edge hits while its tightly tuned relationship with the system’s leverage ratio keeps the suspension highly reactive even while pedaling.

Jamis® 3VO Axle Path Illustration
Jamis Portal C4 Riptide
Riptide

PORTAL C4

MSRP: $4799.95

NOW $2999.95

Purchase online now and pickup at your local bike shop!

THREE VARIABLE OPTIMIZED.

3. LEVERAGE RATIO

Imagine having two bikes in one, that’s essentially what we’ve got with 3VO. The tuned multi-phase leverage ratio with initial rising rate provides an unparalleled pedaling platform while remaining keenly adept at sustaining repeated bumps without holdup.

Up to just beyond the sag point, the system employs a slight rising rate. Some designs claim an initial falling rate with high initial leverage improves sensitivity and responsiveness, but these claims seem more driven by a need to market a deficiency than by any genuine benefit. Why? Because up until the sag point of the bike, sensitivity and responsiveness are primarily felt when the suspension is able to extend, not compress.

3VO Leverage Ratio
Jamis Portal A2 Storm Grey
Storm Grey

PORTAL A2

MSRP: $3799.95

NOW $2499.95

Purchase online now and pickup at your local bike shop!

Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.

Jamis® Bikes Portal® 3VO Frame Parts
View Portal® Small Parts Diagram

PORTAL FRAMESET SPECIFICATIONS

FRAME: Dyad Pro High Modulus Carbon, 130mm
REAR SHOCK: Fox Float DPS Factory Series Kashima EVOL
HEADSET: FSA Orbit IS Integrated
REAR THRU AXLE: 12mm Hollow Alloy
SEAT CLAMP: Alloy 7075, 34.9 Diameter

CHAINSTAY PROTECTOR: Jamis Molded

PORTAL FRAMESET DETAILS

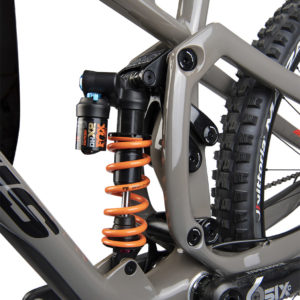

REAR SHOCK EYE-TO-EYE LENGTH: 210mm

REAR SHOCK STROKE: 55mm

SHOCK HARDWARE UPPER: 30mm x 10mm

SHOCK HARDWARE LOWER: 20mm x 10mm

HEAD TUBE: Tapered 1.125-1.5”

HEAD SET: Integrated IS 42/28.6   IS 52/40

BOTTOM BRACKET SHELL: Threaded BSA 73mm

SEAT POST DIAMETER: 31.6mm

SEAT POST CLAMP DIAMETER: 34.9mm

REAR BRAKE CALIPER MOUNT: 160mm Post Mount

CHAIN GUIDE UPPER: Custom Jamis

CHAIN GUIDE LOWER: ISCG05 2-Bolt

REAR HUB SPACING: 148mm

REAR AXLE: L174mm x M12 x P1.75

PORTALC1C2C3C4A2
FrameDyad Pro High Modulus Carbon Fiber, 130mm travel 3VO suspension, Enduro¨ Max sealed bearing pivots, 1.5 – 1 1/8Ó tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide, MRP SXg lower chainguide,Fox DHX2 Factory Series coil shock w/2-position compression switch, SLS 450lb Spring, high/low speed compression, high/low speed rebound, 10mm hardware, replaceable derailleur hangerDyad Pro High Modulus Carbon Fiber, 130mm travel 3VO suspension, Enduro¨ Max sealed bearing pivots, 1.5 – 1 1/8Ó tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide mounts, ISCG05 lower chainguide mounts, Fox Float DPS Factory Series Kashima EVOL shock w/3-position compression, 10mm hardware, replaceable derailleur hangerDyad Pro High Modulus Carbon Fiber, 130mm travel 3VO suspension, Enduro¨ Max sealed bearing pivots, 1.5 – 1 1/8Ó tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide mounts, ISCG05 lower chainguide mounts, Fox Float DPS Performance Series EVOL shock w/3-position compression, 10mm hardware, replaceable derailleur hangerDyad Pro High Modulus Carbon Fiber, 130mm travel 3VO suspension, Enduro¨ Max sealed bearing pivots, 1.5 – 1 1/8Ó tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide mounts, ISCG05 lower chainguide mounts, Fox Float DPS Performance Series EVOL shock w/3-position compression, 10mm shock hardware, replaceable derailleur hangerTriple-butted 6061 aluminum, 130mm travel 3VO suspension, Enduro¨ Max sealed bearing pivots, 1.5 – 1 1/8Ó tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide mounts, ISCG05 lower chainguide mounts, Fox Float DPS Performance Series EVOL shock w/3-position compression, 10mm shock hardware, replaceable derailleur hanger
ForkFox 36 Factory Series Float 29″ w/ 3-position adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 140mm travel, 51mm rakeFox 34 Factory Series Float 29″ w/ 3-position adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 130mm travel, 51mm rakeFox 34 Performance Series Float 29″ w/ 3-position adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 130mm travel, 51mm rakeFox 34 Rhythm Series Float 29″ w/ sweep adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 130mm travel, 51mm rakeFox 34 Rhythm Series Float 29″ w/ sweep adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 130mm travel, 51mm rake
HeadsetFSA Orbit IS Integrated, 8mm cone spacerFSA Orbit IS Integrated, 8mm cone spacerFSA Orbit IS Integrated, 8mm cone spacerFSA Orbit IS Integrated, 8mm cone spacerFSA Orbit IS Integrated, 8mm cone spacer
WheelsStans Flow CB7 Carbon 29″ tubeless wheels, 15x110mm axle front and 12x148mm rear E-SYNC hubs, Sapim D-Light spokesStans Flow MK4 29″ tubeless wheels, 15x110mm axle front and 12x148mm rear E-SYNC hubs, Sapim D-Light spokesStans Flow S2 29″ tubeless wheels, 15x110mm axle front and 12x148mm rear E-SYNC hubs, Sapim Race spokesStan’s No Tubes Flow D 29″ rims, Shimano MT410 15x110mm front & 12x148mm rear hubs, stainless spokesStan’s No Tubes Flow D 29″ rims, Shimano MT410 15x110mm front & 12x148mm rear hubs, stainless spokes
TiresVittoria Mazza 29 x 2.4″, TNT tubelessVittoria Mazza 29 x 2.4″, TNT tubelessVittoria Mazza 29 x 2.4″, TNT tubelessVittoria Mazza 29 x 2.4″, TNT tubelessVittoria Mazza 29 x 2.4″, TNT tubeless
DerailleursShimano XTR, 12-speedShimano XT, 12-speedShimano SLX, 12-speedShimano Deore, 12-speedShimano Deore, 12-speed
Shift leversShimano XTR, 1×12-speedShimano XT, 1×12-speedShimano SLX, 1×12-speedShimano Deore, 1×12-speedShimano Deore, 1×12-speed
ChainShimano M9100, 12-speedShimano M8100, 12-speedKMC X12, 12-speedKMC X12, 12-speedKMC X12, 12-speed
CassetteShimano M9100, 12-speed, 10-51TShimano M8100, 12-speed, 10-51TShimano M7100, 12-speed, 10-51TShimano M6100, 12-speed, 10-51TShimano M6100, 12-speed, 10-51T
CranksetShimano XTR M9120, 32TShimano XT M8120, 32TRace Face Aeffect, 32TRace Face Ride, 32TRace Face Ride, 32T
BB SetShimano BSAShimano BSARace Face BSARace Face BSARace Face BSA
PedalsN/AN/AN/AN/AN/A
BrakesetShimano XTR M9120 4-piston Ice-Tech hydraulic disc, RT-900 180mm rotorsShimano XT M8120 4-piston Ice-Tech hydraulic disc, RT-800 180mm rotorsShimano SLX M7120 4-piston Ice-Tech hydraulic disc, RT-70 180mm rotorsShimano MT420 4-piston hydraulic disc, 180mm front & 160mm rear RT30 rotorsShimano MT420 4-piston hydraulic disc, 180mm front & 160mm rear RT30 rotors
HandlebarRace Face Turbine R, 800mm x 20mm rise, 35mm diameterRace Face Turbine R, 800mm x 20mm rise, 35mm diameterRace Face Aeffect R, 780mm x 20mm rise, 35mm diameterRace Face Ride, 760mm x 20mm rise, 35mm diameterRace Face Ride, 760mm x 20mm rise, 35mm diameter
StemRace Face Turbine R, 50mm extension, 35mm clamp diameterRace Face Turbine R, 50mm extension, 35mm clamp diameterRace Face Aeffect R, 50mm extension, 35mm clamp diameterRace Face Ride, 50mm extension, 35mm clamp diameterRace Face Ride, 50mm extension, 35mm clamp diameter
GripsJamis Lock-OnJamis Lock-OnJamis Lock-OnJamis Lock-OnJamis Lock-On
Seat PostFox Transfer Factory Series Dropper, 1x remoteFox Transfer Factory Series Dropper, 1x remoteRace Face Aeffect R Dropper, 1x remoteKS Rage Dropper, Southpaw remoteKS Rage Dropper, Southpaw remote
SaddleWTB VoltWTB VoltWTB VoltWTB VoltWTB Volt
SizesS (15.5), M (17), L (19), XL (21)S (15.5), M (17), L (19), XL (21)S (15.5), M (17), L (19), XL (21)S (15.5), M (17), L (19), XL (21)XS (14.5), S (15.5), M (17), L (19), XL (21)
ColorSandstoneWinter DuskOxbloodRiptideStorm Grey
Weight30 lbs28.5 lbs30 lbs31.25 lbs33.75 lbs

Jamis® 3VO Geometry Diagram
MODELSIZETT EFFECTIVEHT ANGLEST ANGLECHAINSTAYWHEELBASEBB DROPHEADTUBESTANDOVERSTACKREACH
C1, C2, C3, C4S/15.5″23.0 / 585LO 67° HI 67.5°LO 74° HI 74.5°17.2 / 43745.2 / 1148LO 1.3 / 33 HI 1.0 / 264.1 / 105LO 29.7 / 754 HI 29.9 / 76123.9 / 60616.5 / 418
C1, C2, C3, C4M/17″24.0 / 610LO 67° HI 67.5°LO 74° HI 74.5°17.2 / 43746.2 / 1173LO 1.3 / 33 HI 1.0 / 264.5 / 115LO 29.5 / 749 HI 29.8 / 75624.2 / 61517.3 / 439
C1, C2, C3, C4L/19″25.0 / 635LO 67° HI 67.5°LO 74° HI 74.5°17.2 / 43747.2 / 1198LO 1.3 / 33 HI 1.0 / 264.9 / 125LO 29.7 / 754 HI 29.9 / 76124.6 / 62518.2 / 461
C1, C2, C3, C4XL/21″26.0 / 660LO 67° HI 67.5°LO 74˚ HI 74.5°17.2 / 43748.2 / 1224LO 1.3 / 33 HI 1.0 / 265.3 / 135LO 30.5 / 774 HI 30.7 / 78124.9 / 63418.9 / 482
A2XS/14.5″22.0 / 560LO 67.5° HI 68°LO 74.5° HI 75°17.2 / 43744.2 / 1122LO 1.3 / 33 HI 1.0 / 263.7 / 95LO 28.7 / 731 HI 29.1 / 73823.5 / 59715.6 / 397
A2S/15.5″23.0 / 585LO 67.5° HI 68°LO 74.5° HI 75°17.2 / 43745.2 / 1148LO 1.3 / 33 HI 1.0 / 264.1 / 105LO 29.7 / 754 HI 29.9 / 76123.9 / 60616.5 / 418
A2M/17″24.0 / 610LO 67.5° HI 68°LO 74.5° HI 75°17.2 / 43746.2 / 1173LO 1.3 / 33 HI 1.0 / 264.5 / 115LO 29.5 / 749 HI 29.8 / 75624.2 / 61517.3 / 439
A2L/19″25.0 / 635LO 67.5° HI 68°LO 74.5° HI 75°17.2 / 43747.2 / 1198LO 1.3 / 33 HI 1.0 / 264.9 / 125LO 29.7 / 754 HI 29.9 / 76124.6 / 62518.2 / 461
A2XL/21″26.0 / 660LO 67.5° HI 68°LO 74.5 HI 75°17.2 / 43748.2 / 1224LO 1.3 / 33 HI 1.0 / 265.3 / 135LO 30.5 / 774 HI 30.7 / 78124.9 / 63418.9 / 482
