HIGHPOINT V2
HARDTAIL 29 TRAIL BIKES
Manufacturer’s Suggested Retail Price excludes shipping costs, dealer assembly/prep, taxes or import duties.
TAPERED HEAD TUBE
Riding fast with control requires steering precision, which starts with the front of the bike. Stiffening this area results in less wheel deflection, more wheel control. A full 1.5” head tube and steerer would achieve this, but would add unnecessary weight and bulk, and limit stem choices. But a tapered 1 1 /8” to 1 1 /2” head tube serves up a significant increase in rough terrain tracking and stability without much of a weight penalty compared to standard 1 1 /8” systems.
WHY THRU AXLES?
The increase in stiffness of a 15mm fork axle improves steering & handling significantly. It also puts less stress on the fork’s internals, improving fork durability and performance. The hub drop outs provide a self centering feature for the wheel for fast, easy installation.
TUBELESS-READY
Tubeless setups allow for lower tire pressures, which means increased traction with the added benefit of improved puncture resistance.
DROPPER SEATPOST
A dropper seatpost allows riders to instantly lower their saddle via a handlebar lever, significantly improving control, safety, and confidence on technical descents and steep terrain by lowering the center of gravity and providing more room to manuver.
DUAL WATERBOTTLE MOUNTS
Most of our Highpoint sizes offer two water bottle mounts located inside the main frame. This provides excellent hydration capacity in an easily accessible position.
UDH
UDH (Universal Derailleur Hanger) design not only allows compatibility with modern SRAM drivetrains, but it also makes proprietary derailleur hangers a thing of the past.
STOPPING POWER
Top-notch braking shouldn’t break the bank. Shimano’s hydraulic brakes offer power, smooth modulation, and all-day, all-conditions reliability.
TRUE ALL-AROUNDER
Hardtails are special. Sure, they don’t have the plushness of their full-suspension siblings, but they more than make up for it in the fun department. And if you’re not having fun then what’s the point? Highpoint V2 takes this a step further with updated frame geometry including longer reach on both models, UDH design on the A1 frame, and key spec updates.
HIGHPOINT A1
MSRP: $1599.95
- 6061 triple-butted aluminum
- Rock Shox Recon Silver RL 29”, Solo Air compression, external rebound, lockout, 120mm travel
- WTB STX i23 TCS tubeless 29” rims, 32H, alloy disc hubs
- Shimano Deore Shadow Plus rear, 12-speed
- Shimano Deore, 32T Crank
- Tektro M280 hydraulic disc brakes
- Jamis XC alloy handlebar and stem
- WTB Volt Saddle

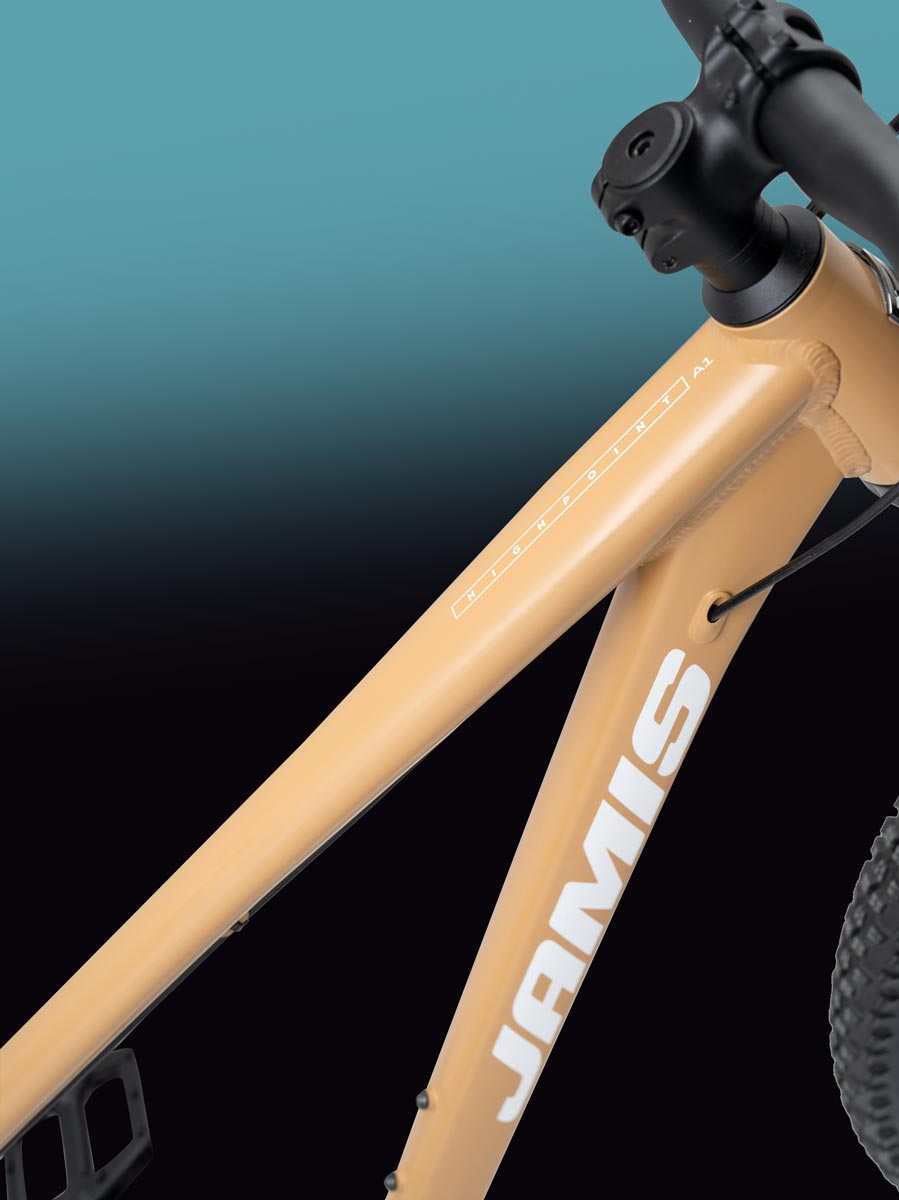

FRAME MATERIALS
HIGHPOINT A2
MSRP: $1099.95
- 6061 triple-butted aluminum
- SR Suntour XCM 32 HLO 29", coil, hydraulic speed lock out, 120mm travel
- MTB tubeless ready double wall 23mm internal alloy disc rims
- Novatec 6-bolt alloy hubs, nickel-plated spokes
- Shimano Cues 32T crankset
- Shimano Cues 10-speed shifter, cassette & derailleur
- Shimano MT200 hydraulic disc, 160mm rotors
- Jamis alloy 31.8 x 740mm handlebar and alloy stem
- WTB Volt Saddle
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
| HIGHPOINT V2 | A1 | A2 |
|---|---|---|
| Frame | 6061triple-butted aluminum main tubes, 1.5 – 1 1/8” tapered head tube, 12x148mm thru axle dropout, UDH derailleur hanger | 6061 triple-butted aluminum main tubes, 1.5 – 1 1/8” tapered head tube, over-sized stays, replaceable derailleur hanger |
| Fork | Rock Shox Judy Gold RL, Solo Air compression, external rebound, lockout, 30mm alloy stanchions, magnesium lowers, 15x110mm axle, 120mm travel | SR Suntour XCM 32 HLO 29″, coil spring, hydraulic speed lock out adjust, external preload adjustor, 32mm stanchions, aluminum lowers, 15x100mm axle, 120mm travel |
| Headset | Zero-stack internal cup, 15mm cone spacer | Zero-stack internal cup, 15mm cone spacer |
| Wheels | MTB tubeless ready double wall 23mm internal alloy disc rims, Shimano TC500 centerlock alloy sealed bearing hubs, nickel-plated spokes | MTB tubeless ready double wall 23mm internal alloy disc rims, Novatec 6-bolt alloy hubs, nickel-plated spokes |
| Tires | WTB Trailboss, 29 x 2.25” | WTB Trailboss, 29 x 2.25” |
| Derailleurs | Shimano Deore, 12-speed | Shimano Cues, 10-speed |
| Shift levers | Shimano Deore, 1×12-speed | Shimano Cues, 1×10-speed |
| Chain | Shimano M6100, 12-speed | KMC eGlide, 10-speed |
| Cassette | Shimano M6100, 12-speed, 10-51T | Shimano LG300, 10-speed, 11-48T |
| Crankset | Shimano MT511, 32T | Shimano Cues, 32T |
| BB Set | Shimano BSA | Shimano BSA |
| Pedals | MTB platform, hi-impact resin | MTB platform, hi-impact resin |
| Brakeset | Shimano MT200 hydraulic disc, Shimano RT10 160mm rotors | Shimano MT200 hydraulic disc, Shimano RT10 160mm rotors |
| Handlebar | Jamis XC alloy riser, 31.8 x 20mm rise x 740mm | Jamis XC alloy riser, 31.8 x 20mm rise x 740mm |
| Stem | Jamis XC alloy threadless, 31.8 x 45mm | Jamis XC alloy threadless, 31.8 x 45mm |
| Grips | Kraton | Kraton |
| Seat Post | TransX dropper 31.6mm seatpost, 100mm travel Length: (15″), 125mm travel Length: (17″/19″/21″) | Jamis alloy micro-adjust, 31.6 x 400mm |
| Saddle | WTB Volt | WTB Volt |
| Sizes | 15”, 17”, 19”, 21” | 15”, 17”, 19”, 21” |
| Color | Putty | Graphite |
| Weight | TBA | TBA |
| MODEL | SIZE | TT EFFECTIVE | HT ANGLE | ST ANGLE | CHAINSTAY | WHEELBASE | BB DROP | HEADTUBE | STANDOVER | STACK | REACH |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A1 v2, A2 v2 | S/15.5″ | 23.5 / 598 | 68° | 74° | 17.3 / 440 | 44 / 1126 | 2.4 / 60 | 3.5 / 90 | 30.0 / 763 | 24.7 / 628 | 16.5 / 418 |
| A1 v2, A2 v2 | M/17″ | 24.5 / 623 | 68° | 74° | 17.3 / 440 | 45 / 1152 | 2.4 / 60 | 3.9 / 100 | 31.5 / 799 | 25.1 / 637 | 17.3 / 440 |
| A1 v2, A2 v2 | L/19″ | 25.5 / 647 | 68° | 74° | 17.3 / 440 | 46 / 1178 | 2.4 / 60 | 4.3 / 110 | 32.9 / 836 | 25.4 / 646 | 18.2 / 462 |
| A1 v2, A2 v2 | XL/21″ | 26.5 / 672 | 68° | 74° | 17.3 / 440 | 47 / 1204 | 2.4 / 60 | 4.7 / 120 | 34.2 / 868 | 25.8 / 656 | 19.1 / 484 |
