DIVIDE
29 / 27.5 SPORT HARDTAIL MOUNTAIN BIKE
Manufacturer’s Suggested Retail Price excludes shipping costs, dealer assembly/prep, taxes or import duties.
LIGHTWEIGHT ALUMINUM FRAME
Carrying around extra weight is never fun, which is why Divide is constructed with lightweight 6061 aluminum alloy. It features an oversized 34.9mm seat tube, which provides extra stiffness and support for pedaling.
SR SUNTOUR SUSPENSION FORK
(DIVIDE LTD MODEL)
All of those little bumps on the road add up, and a suspension fork offers the best way to prevent those vibrations from making their way through your hands and into your body. With 80mm of suspension travel, Divide’s SR SUNTOUR XCE28 fork will absorb the bumps and help you keep control.
TEKTRO MECHANICAL DISC BRAKES
Having more braking power gives you much more control over your bike, which is why we spec’ed Divide with Tektro mechanical disc brakes. They also perform much better than standard brakes in less than optimal weather, which is important for year-round riders.
WATER BOTTLE MOUNTS
Depending on frame size, Divide features mounts on either the down tube, seat tube, or both to easily attach a water bottle holder, tire pump, or spare tool kit.
WHEEL SIZE
Smaller wheels for shorter riders, bigger wheels for taller riders. Proportion makes sense to us, which is why smaller Divide sizes (13”, 15”, and both step-over sizes) feature 27.5” wheels and larger sizes (17”, 19”, and 21”) feature 29” wheels.
SEALED CARTRIDGE BOTTOM BRACKET
Keeping the pedals turning smoothly makes bike riding enjoyable, and Divide’s sealed cartridge bottom bracket requires much less maintenance than a lower-cost loose bearing design. This is particularly true for bikes that see sub-optimal conditions like sand or excessive moisture.

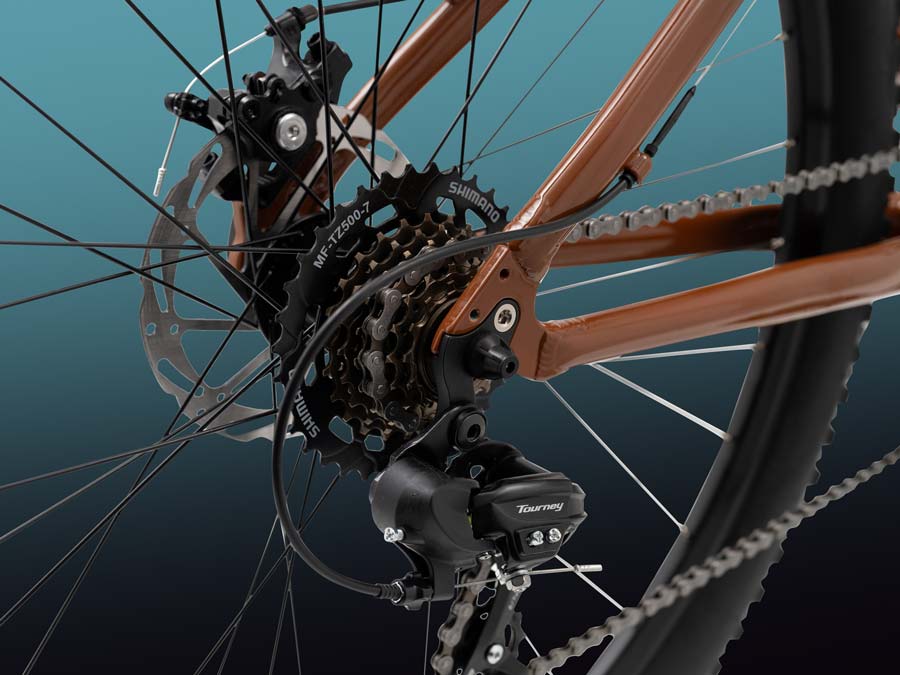

21-SPEED SHIMANO DRIVETRAIN
Divide features enough gearing to go just about anywhere. A 42/34/24t crankset matched to a 14-34t cassette and Shimano shifter/derailleur provides ample gearing at both ends; low gears for climbing and high gears for top speed.
QUICK-RELEASE WHEEL AXLES
Both front and rear wheels on Divide are easily removable with a quick-release lever mechanism. Disc brakes also make wheel removal and reinstallation easier and more straightforward.
Shimano Drivetrain
Divide models both feature 3×7 Shimano drivetrains, which bring exceptional value, reliability, and miles upon miles of smooth shifting. Add Tektro mechanical disc brakes and these bikes become perfect for city riding, commuting, light recreational trails, and everything in between.
DIVIDE LTD
MSRP: $599.95
Purchase online now and pickup at your local bike shop!
- 6061 aluminum, zero-stack head tube, replaceable hanger
- SR Suntour XCE 28 DS 27.5", coil spring, 100mm travel
- Double-wall disc rims, Joytec disc hubs, nickel-plated spokes
- Shimano, 7-Speed drivetrain
- Sealed cartridge bottom bracket
- Tektro M280 disc brakes, 160mm rotors & Shimano levers
- Jamis XC alloy handlebar & stem
- DDK saddle
Top-notch performance to get you Started down the mountain biking path.
Featuring a lightweight 6061 aluminum frame, 80mm travel suspension fork, Tektro disc brakes and Shimano drivetrain, Divide hits all the marks at a very reasonable price point.
DIVIDE
MSRP: $599.95
Purchase online now and pickup at your local bike shop!
- 6061 aluminum frame
- XC80, coil spring fork, external preload adjustor
- Alex TD26 double-wall disc rims, 32H, alloy 6-bolt disc hubs
- Shimano, 7-Speed drivetrain
- Sealed cartridge bottom bracket
- Tektro M280 disc brakes, 160mm rotors & Shimano levers
- Jamis XC alloy handlebar & stem
- Jamis ATB Sport saddle
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
| DIVIDE® | DIVIDE LTD | DIVIDE |
|---|---|---|
| Frame | 6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, replaceable derailleur hanger | 6061 aluminum main tubes, over-sized seat tube, replaceable derailleur hanger |
| Fork | SR Suntour XCE 28 DS 27.5″, coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 100mm travel | XC80, coil spring, external preload adjustor, 25.4mm stanchions, aluminum lowers, 80mm travel |
| Headset | Zero-stack internal cup, 8mm cone spacer | VP threadless |
| Wheels | MTB double-wall alloy disc rims, Joytec alloy 6-bolt disc hubs, nickel-plated spokes | Alex TD26 double wall rims, 32H, alloy 6-bolt disc hubs, 14G black electroplated spokes |
| Tires | Delium SA-258, 2.1” | CST Patrol, 2.25” |
| Derailleurs | Shimano TZ500 rear and TY500 front | Shimano TY300 rear and TY500 front |
| Shift levers | Shimano EF500, 3×7-speed | Shimano EF41, 3×7-speed |
| Chain | KMC Z51, 7-speed | KMC Z51, 7-speed |
| Cassette | Shimano TZ500, 7-speed, 14-34T | Shimano TZ31, 7-speed, 14-34T |
| Crankset | Forged alloy crank, 42/34/24T, 170mm | Forged alloy crank, 42/34/24T, 170mm |
| BB Set | Sealed cartridge | Sealed cartridge |
| Pedals | MTB platform, hi-impact resin | MTB platform, hi-impact resin |
| Brakeset | Tektro M280 mechanical disc, 160mm rotors and Shimano levers | Tektro M280 mechanical disc, 160mm rotors and Shimano levers |
| Handlebar | Jamis XC alloy riser, 31.8 x 20mm rise x 680mm | Jamis XC alloy riser, 25.4 x 20mm rise x 620mm |
| Stem | Jamis XC alloy threadless, 31.8 x 10˚ rise x 60mm | Jamis XC alloy threadless, 25.4 x 15 ̊ rise x 60mm |
| Grips | Kraton | Kraton |
| Seat Post | Jamis alloy micro-adjust, 31.6 x 350mm | Jamis alloy micro-adjust, 31.6 x 350mm |
| Saddle | Jamis ATB Sport/Sport Women’s, SL cover, protective front and rear guards | Jamis ATB Sport/Sport Women’s, SL cover, protective front and rear guards |
| Sizes | M: 13”, 15” – (27.5”) / 17”, 19”, 21” – (29”) | M: 13”, 15” – (27.5”) / 17”, 19”, 21” – (29”) S/O: 12”, 14” – (27.5”) |
| Color | Milk Chocolate | Gloss Black, Oxblood S/O: Riptide |
| Weight | 32 lbs | 32 lbs |
| MODEL | SIZE | TT EFFECTIVE | HT ANGLE | ST ANGLE | CHAINSTAY | WHEELBASE | FORK RAKE | BB DROP | HEADTUBE | STANDOVER |
|---|---|---|---|---|---|---|---|---|---|---|
| DIVIDE | 13″ | 21.57 / 548 | 69° | 74° | 17.10 / 435 | 41.73 / 1060 | 1.57 / 40 | 11.97 / 304 | 3.54 / 90 | 28.15 / 715 |
| DIVIDE | 15″ | 22.32 / 567 | 69° | 74° | 17.10 / 435 | 42.52 / 1080 | 1.57 / 40 | 11.97 / 304 | 4.33 / 110 | 29.13 / 740 |
| DIVIDE | 17″ | 23.66 / 601 | 69° | 74° | 17.70 / 450 | 44.61 / 1133 | 1.81 / 46 | 12.32 / 313 | 4.13 / 105 | 31.06 / 789 |
| DIVIDE | 19″ | 24.61 / 625 | 69° | 74° | 17.70 / 450 | 45.63 / 1159 | 1.81 / 46 | 12.32 / 313 | 4.53 / 115 | 32.36 / 822 |
| DIVIDE | 21″ | 25.55 / 649 | 69° | 74° | 17.70 / 450 | 46.61 / 1184 | 1.81 / 46 | 12.32 / 313 | 4.92 / 125 | 33.62 / 854 |
| DIVIDE | 12″ S/O | 21.57 / 548 | 69° | 74° | 17.10 / 435 | 41.73 / 1060 | 1.57 / 40 | 11.97 / 304 | 3.54 / 90 | 25.55 / 649 |
| DIVIDE | 14″ S/O | 22.13 / 562 | 69° | 74° | 17.10 / 435 | 42.32 / 1075 | 1.57 / 40 | 11.97 / 304 | 3.94 / 100 | 26.26 / 667 |
