HUDSON E2 - QUICK-START

GETTING STARTED

Click here to begin getting accustomed to your Hudson E2 pedal assist system.

GETTING CHARGED

Charging your Hudson E2 battery is a breeze. Learn all about it here.

GETTING CONNECTED

Looking to have your Hudson E2 connect to your mobile device? Click here.

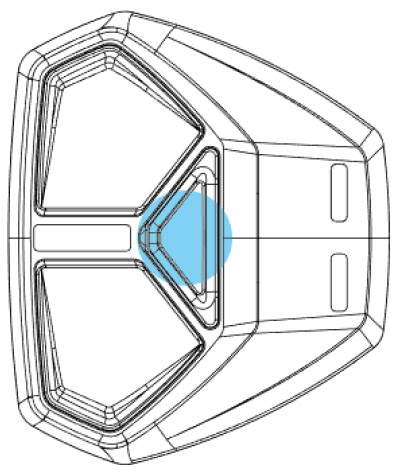

GETTING STARTED

POWER ON/OFF

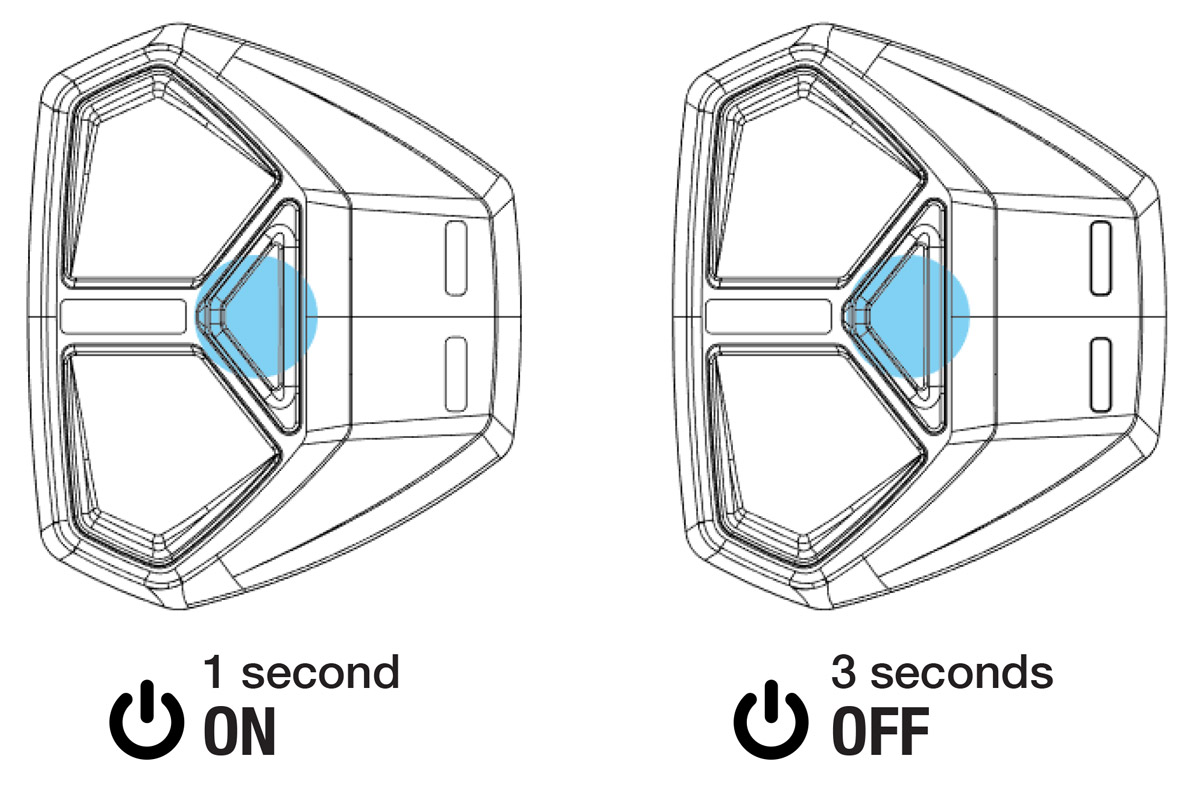

To power ON the Hudson E2 pedal assist system, long-press the power button for one second or until you see the LED indicator illuminate. To power OFF the system, press and hold the power button for three seconds or until you see the LED indicator turn off.

PEDAL ASSIST CONTROL

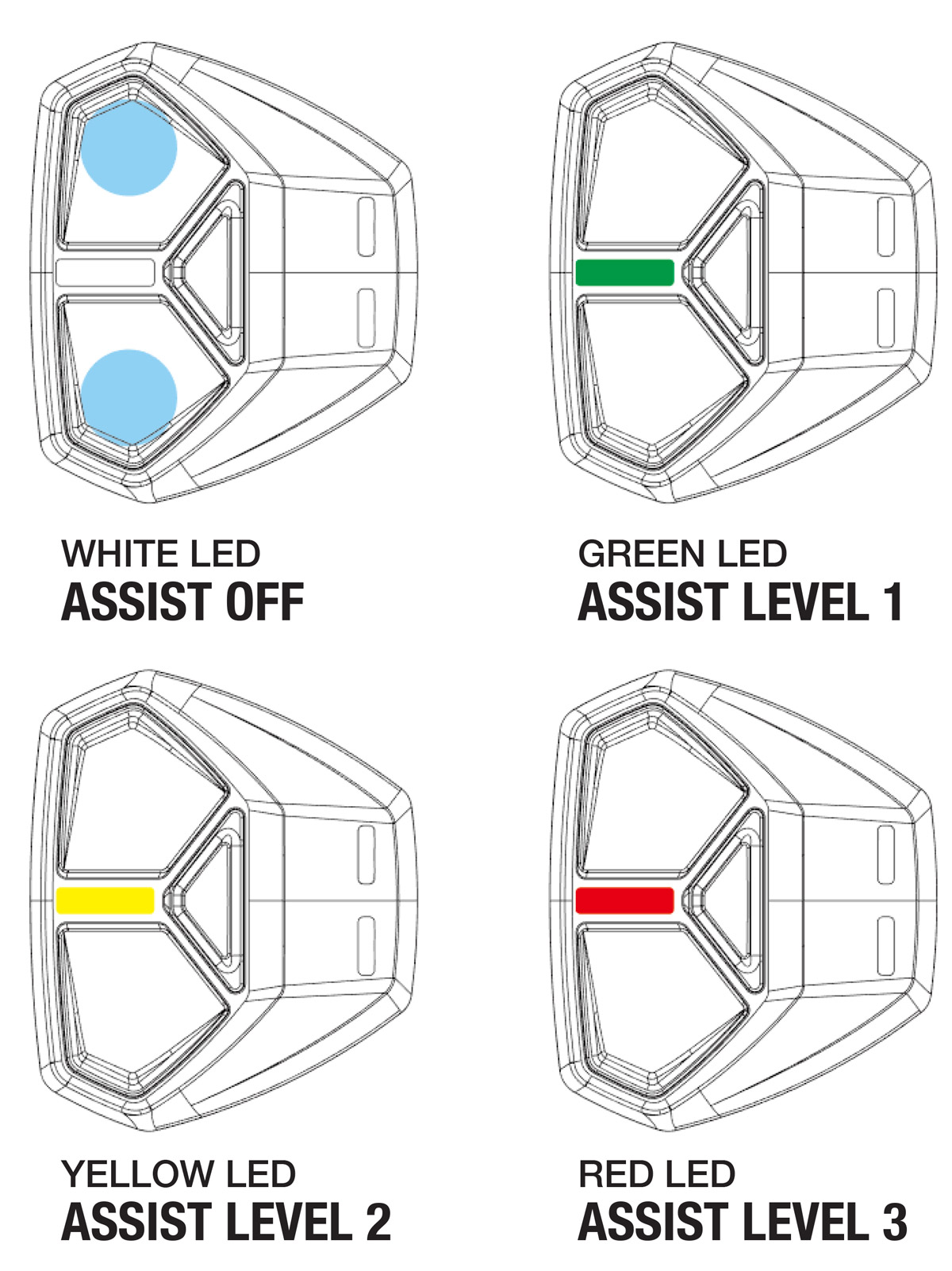

Press the UP/DOWN button to control the level of pedal assist support.

When the system is first powered on, the LED will be illuminated WHITE, which indicates NO pedal assist.

With each press of the UP button, the LED will change color to indicate the amount of pedal assist.

GREEN = Level 1 Pedal Assist

YELLOW = Level 2 Pedal Assist

RED = Level 3 Pedal Assist

Choose the optimal amount of pedal assist for your preferred comfort level.

GETTING CHARGED

BATTERY LEVEL INDICATION

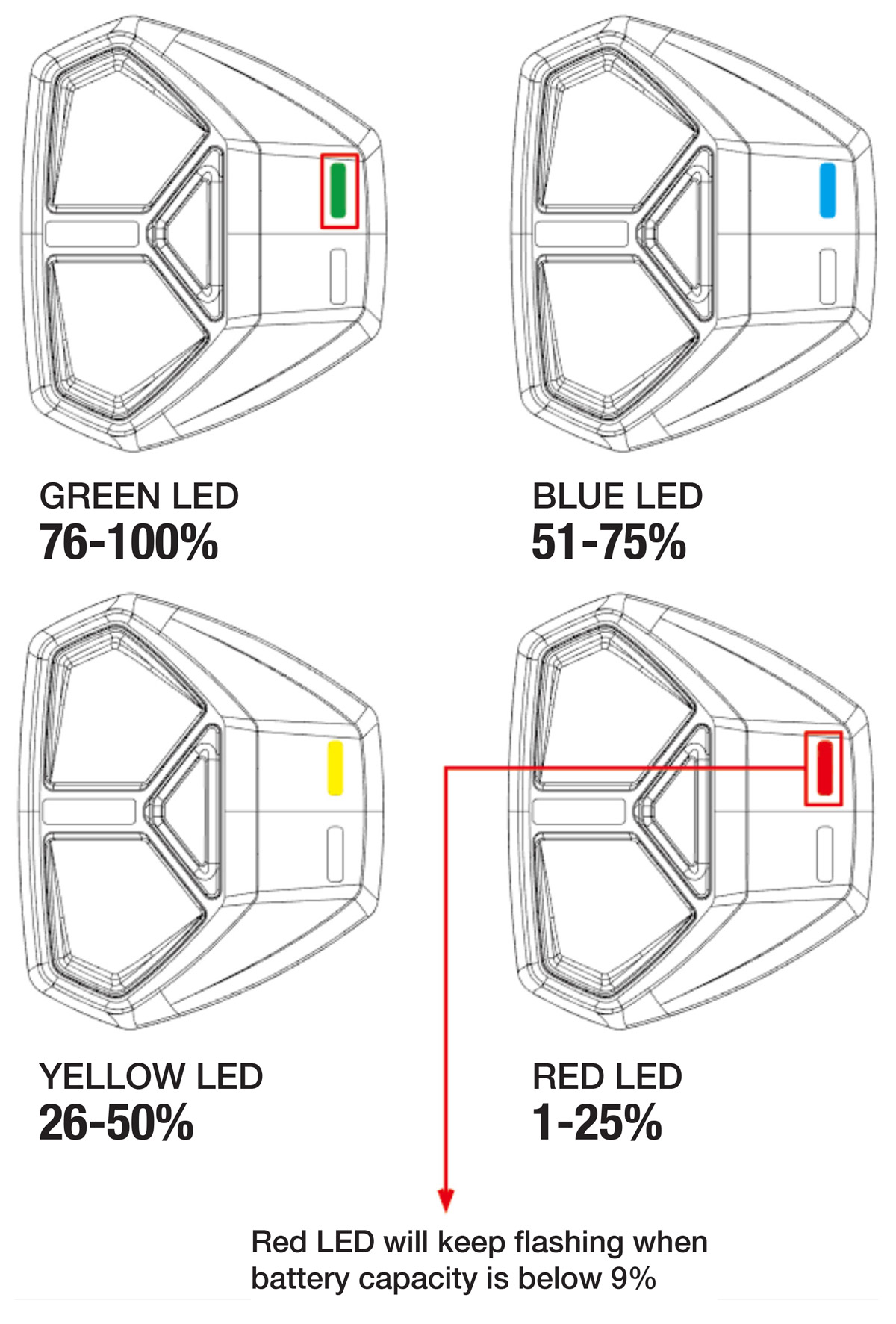

The Hudson E2 handlebar control indicates your current battery level. See diagram to understand how to read these indicators to let you know when its time for a re-charge.

Removing the Battery

While it is not required to remove the Hudson E2’s battery to recharge, you may remove the battery so you can charge inside your home, office, coffee shop or anywhere else that is convenient.

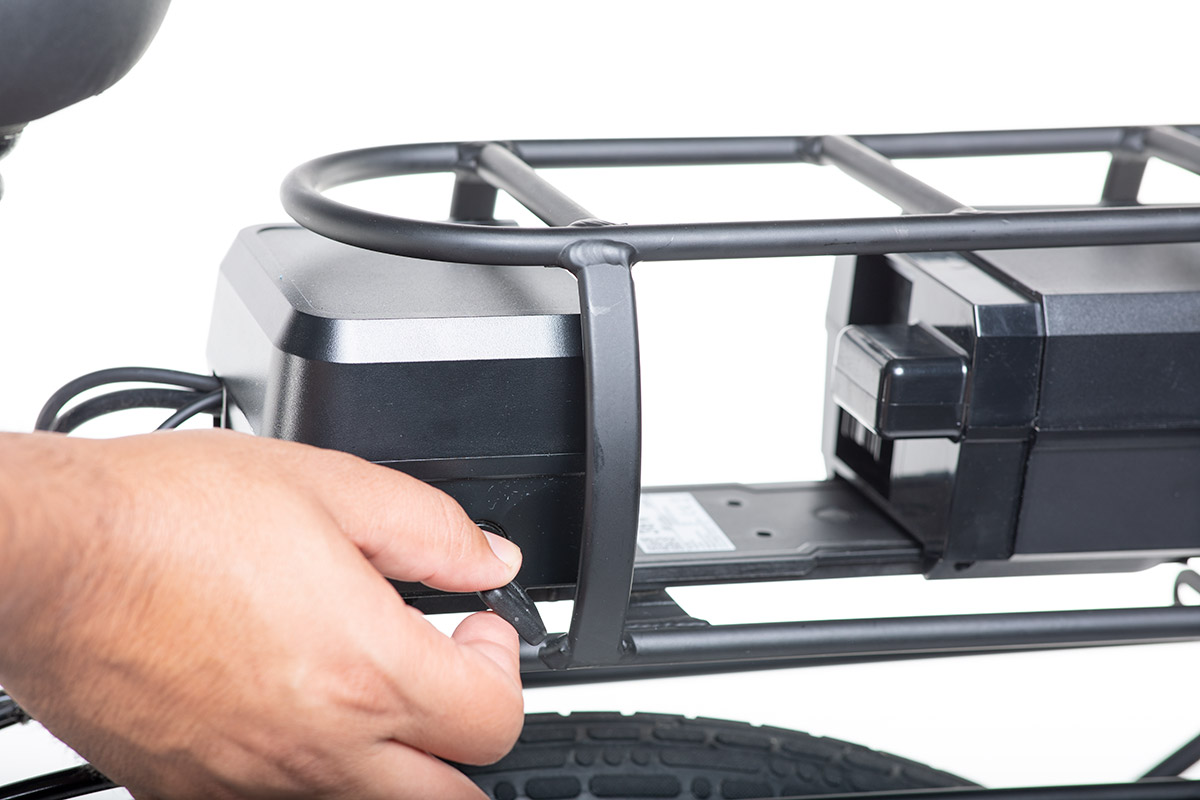

STEP 1 – Unlock the battery by inserting the key and turning counter clockwise.

STEP 2 – Slide the battery out the rear of the carrier

STEP 1
STEP 2

Attach Charging Cable

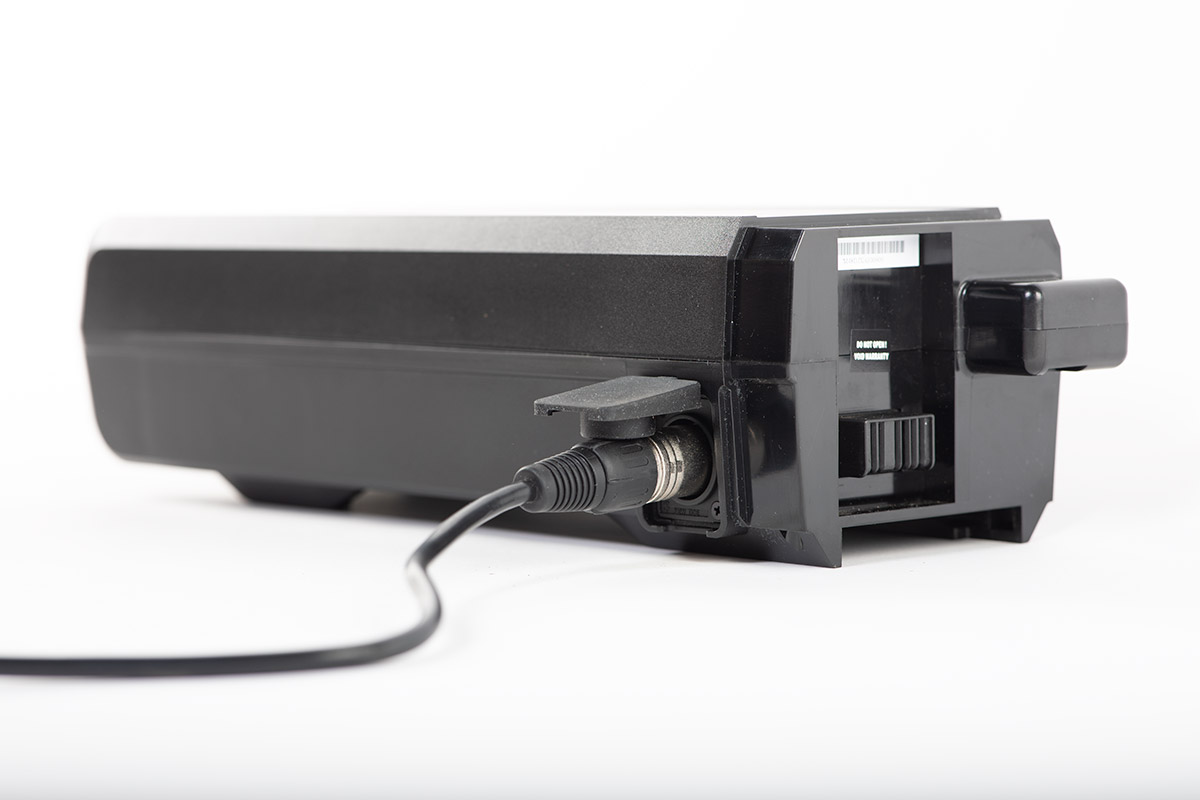

After locating the charging port on the side of the battery, lift the protective cover and attach charging cable. Plug the other end of the charging cable into a standard recepticle.

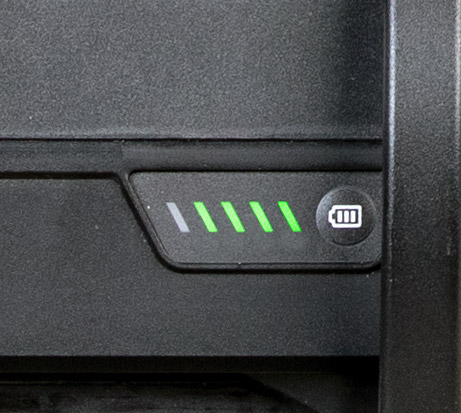

You will notice the LED indicator on the opposite side of the battery will blink to indicate the battery is charging. After the charging process is complete (approximately 4-5 hours for a full charge from empty), the LED will stop blinking and all five green LED bars will be illuminated.

GETTING CONNECTED

CONNECTING VIA BLUETOOTH

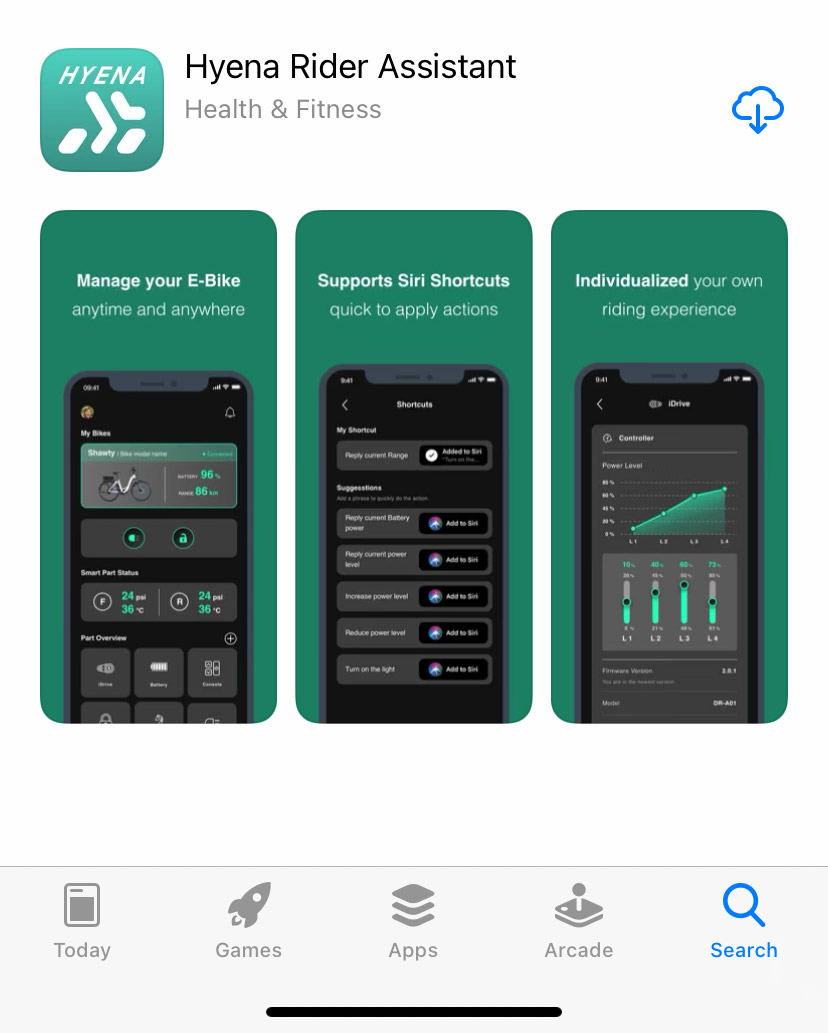

The Hyena Rider Assistant app is available for Apple iPhone and Google Android devices. You may download the app for your iPhone or Android device by tapping the links below.

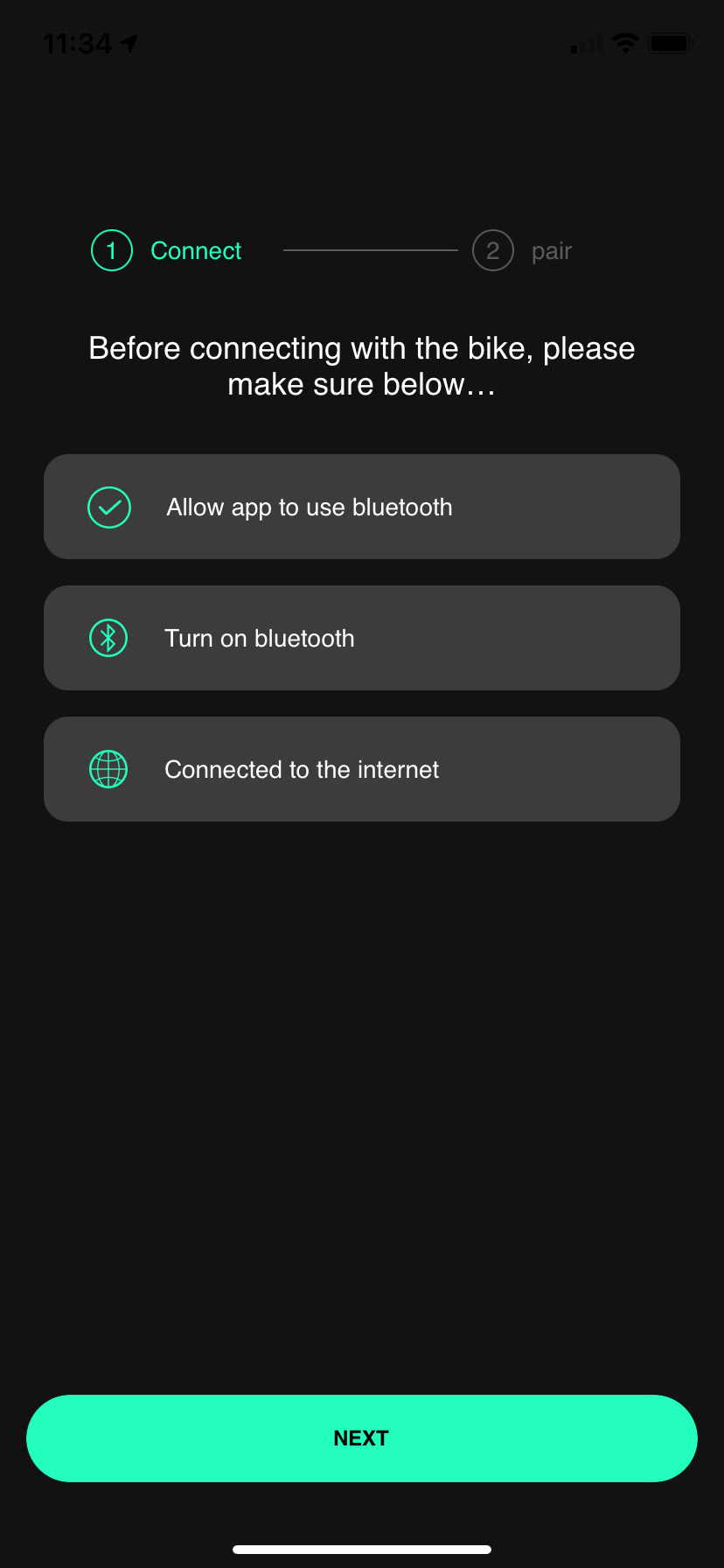

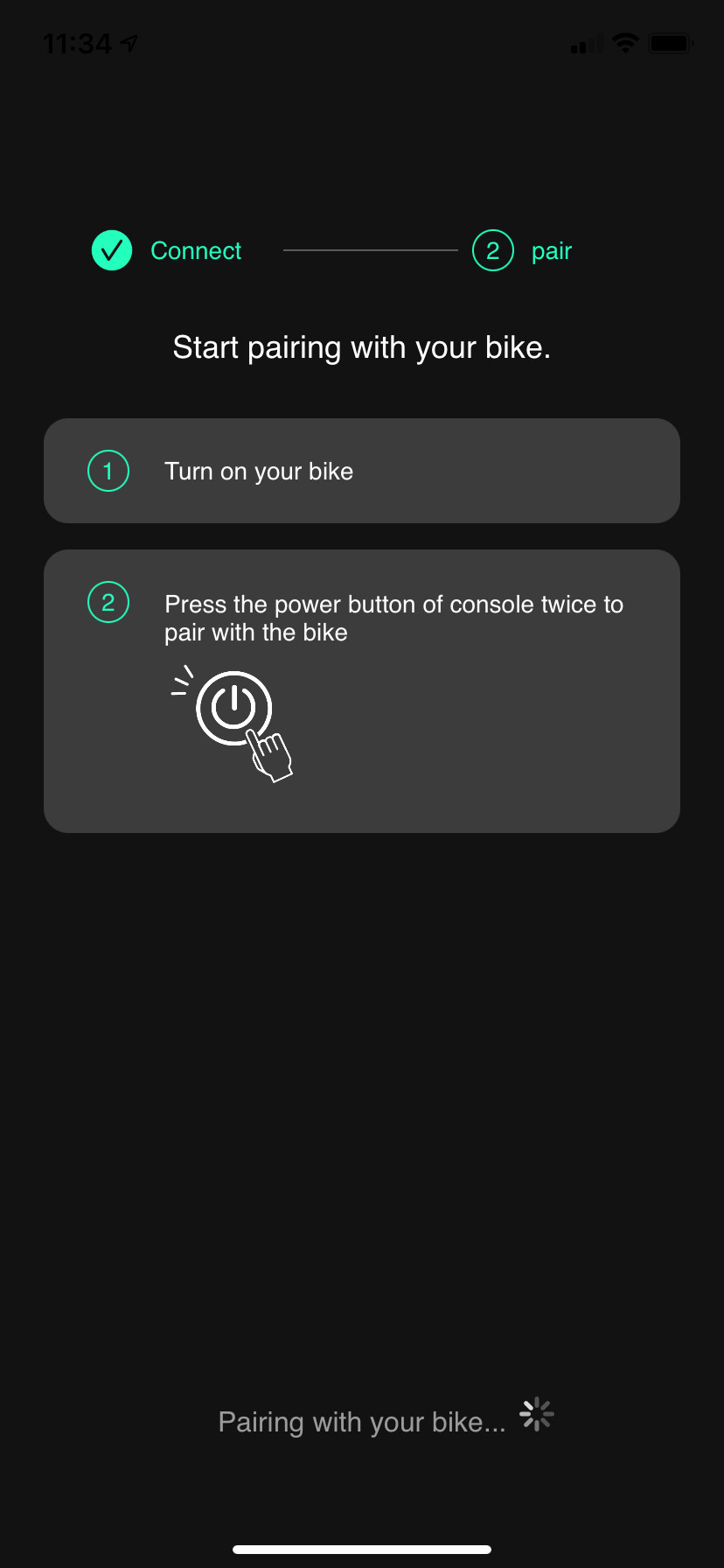

After downloading the Hyena Rider Assistant app, follow the onscreen instructions to pair your Hudson E2 via Bluetooth.

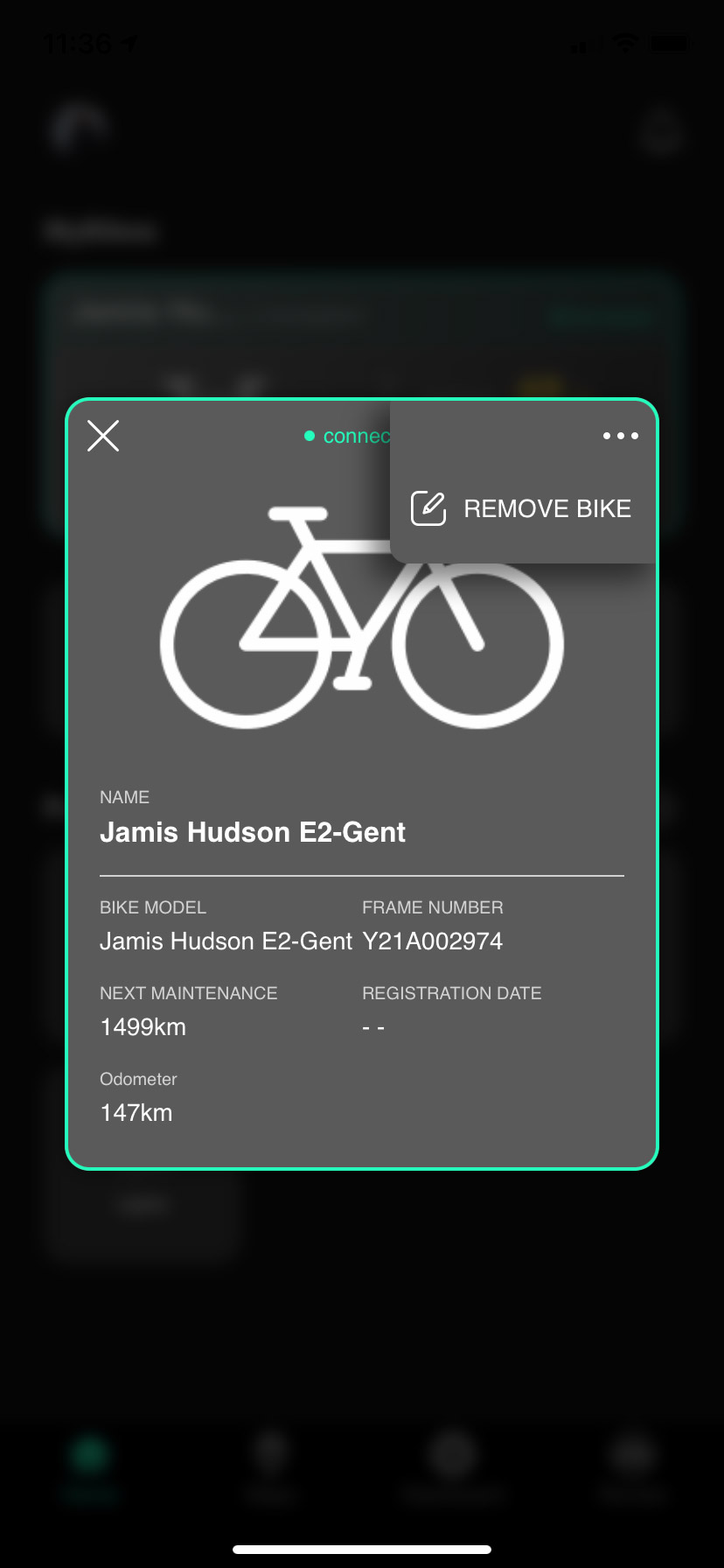

To un-pair or disconnect your Hudson E2 from the Hyena Rider Assistant app, tap on the bicycle icon. After tapping the bicycle icon, a pop-up window will appear. Tap the menu on the top right (three dots) and select REMOVE BIKE.
