Jamis® Sequel® Rear Angle

SEQUEL

URBAN ADVENTURE BIKES

Manufacturer’s Suggested Retail Price excludes shipping costs, dealer assembly/prep, taxes or import duties.

Jamis® Sequel S2 Riptide® Angle Front

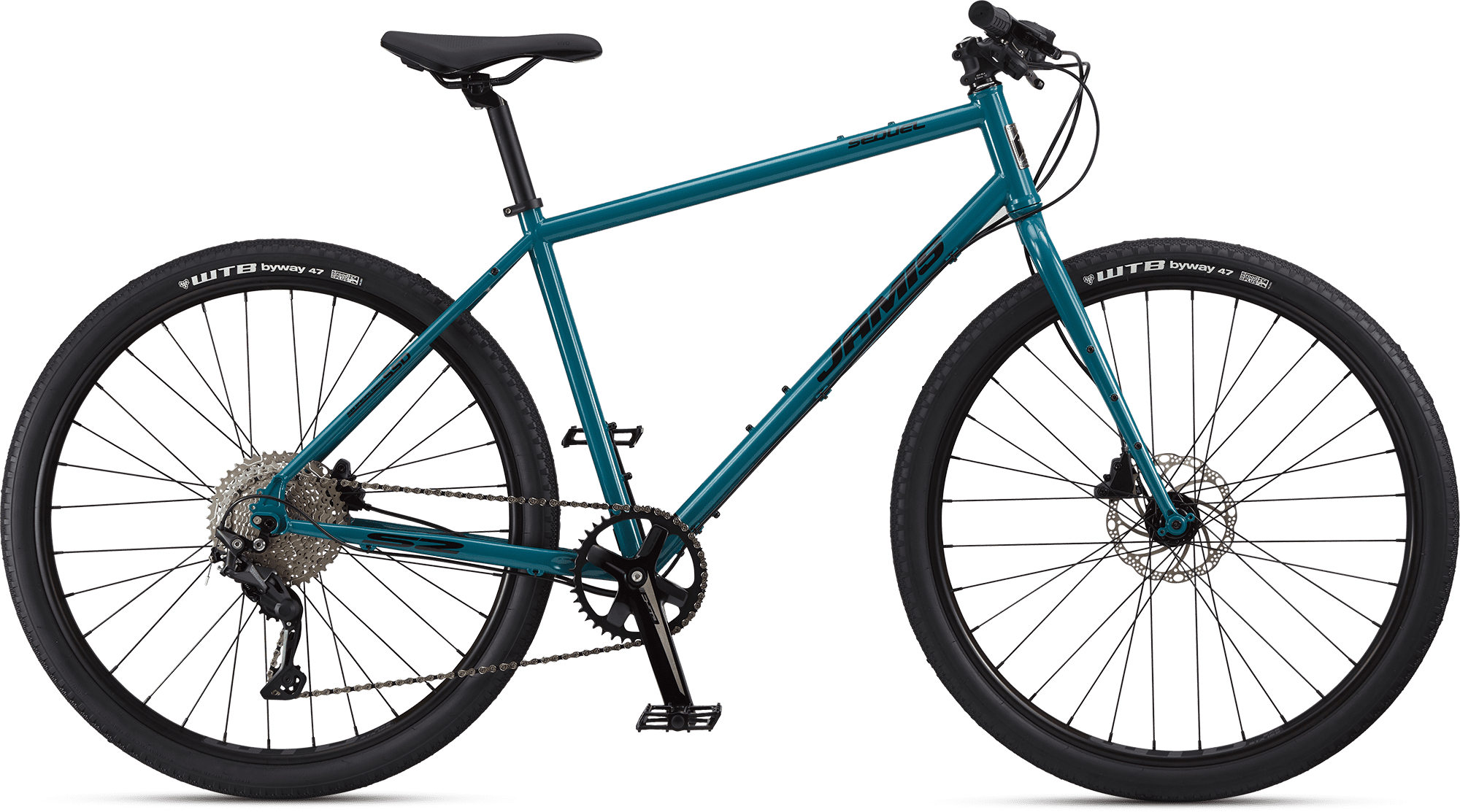

Jamis® Sequel® S2 Riptide®
Jamis Bullseye

FRAME DESIGN

Starting with a wide and consistent stack and reach range, we set out to design a frame that could handle your everyday city life. Commuting year round in mother nature worst conditions or hitting up a dirt trail the Sequel will make it happen and maintain a confortable ride. As you start to review the geo chart you will noticed we have 2 different fork offsets, 3 different BB drops and rear center measurements. Add size specific tubing and you have what we feel is the perfect fit for all sized riders. The reason for this custom geometry is to give you the best fit and the most comfort possible.

Jamis Bullseye

SIZE SPECIFIC DESIGN

Size Specific Design (SSD) is the Jamis design philosophy and technique used to create the best possible riding bike for each size rider. Rather than limiting frame size variations to just different length top, seat and head tubes lengths, we take an all-inclusive look at each frame’s total configuration. Every SSD frame will also feature size-specific BB drop, rear center, fork offset/trail and SST technology.

Jamis Bullseye

12MM THRU-AXLE

Securing the wheel to the frame and fork by threading it into the rear dropouts is not only safer, it’s stiffer. Increasing the axle diameter from 10mm to 12mm provides a stable platform for the disc braking forces and allows us to tune the fork and rear seat stays for more compliance/comfort. You will appreciate this on every ride.

Jamis Bullseye

DISC BRAKES

The Sequel is designed for anything your daily commuting life can throw at you so hydraulic brake was the only choice. With hydraulic disc brakes you will have the most consistent and confidence-inspiring braking available. Just think about jamming down Park Ave between cars in the rain…the power & modulation benefits of hydraulic disc brakes become readily apparent.

Jamis Bullseye

DROPPER POST READY

Just in case you want to continue to push the boundaries, we added external cable routing capability for a 27.2mm dropper post on all 3 Sequels.

Jamis Bullseye

MORE MOUNTS

To make life easier we have repositioned each mount externally in a variety of easy-to-use locations. With a wide collection of fork and frame mounts you can now choose to mount fenders, rear carrier, low-rider front carrier (or two cages for water bottles/ storage), top tube bags, and three front triangle water bottles. This will open up the options wherever and whenever you chose to ride. Bad weather, commuting, a short ride to the park or a longer adventure – anything is possible.

Jamis Bullseye

TUBELESS MTB RIMS

Tubeless and wider rims across the range provide great benefits on any terrain. The tubeless benefits are to help prevent flats with sealant as well as being able to adjust your tire pressure for the perfect ride. For example on dirt trails you may want to reduce the tire pressure to increase your contact patch for better grip without the worry of pinch flatting. The beauty of the internal 23mm wider rims effectively gives you a constant and wide tire surface yielding better handling, stability and confidence with plenty of surface grip for control.

Jamis Bullseye

ROAD PLUS TIRES

Road Plus 47c tires bring supple plus-size traction and smooth riding characteristics to the pavement and beyond where the pavement ends. The WTB Byway tire is pair a smooth centerline to various levels of outer tread/knobs, providing different degrees of resilience and cornering traction to suit specific usages. High-volume tires provides performance on pavement, the urban jungle with resiliency that isn’t shaken by chasing you buddies down rail trails or dirt roads. Ride it on tarmac, take it to the dirt as well. Creating a new riding experience, regardless of where your exploits lead you.

THE URBAN RENEGADE

Think of the Sequel as an urban Renegade, built to tackle anything midtown can throw at it. Our SSD custom geometry and Reynolds double-butted chromoly frame deliver a comfortable ride with maximum stability in every frame size. While those 650b wheels offer both the security of 12mm thru-axle mounting and the pot-hole-eating capability of high-volume 47c tires. Toss in high-powered hydraulic disc brakes, a no-nonsense 1 x 10 drivetrain and a ton of fender, bottle and rack mounts and the Sequel is clearly ready for urban assault no matter the surface or condition.

Jamis® Sequel® S2 Riptide®
Charcoal

SEQUEL S2

RRP: $1349.00

FIND A RETAILER
  • Jamis Size Specific Design, Reynolds 520 double-butted chromoly frame
  • Jamis Chromoly fork, 12mm thru-axle dropouts
  • WTB ST i25 TCS 2.0 (UST Tubeless Compliant System) disc rims
  • WTB Byway Tire with DNA compound
  • Shimano Deore RapidFire Plus SL, 10-speed
  • Shimano Deore RD-M4120 GS Shadow Plus rear
  • FSA Vero Pro crankset
  • Tektro HD-M280/281 hydraulic Flat Mount disc brakes
  • Selle Royal Vivo ERGO saddle
SPECS & GEO

FRAME DESIGN

Starting with a wide and consistent stack and reach range, we set out to design a frame that could handle your everyday city life. Commuting year round in mother nature’s worst conditions or hitting up a dirt trail the Sequel will make it happen and maintain a comfortable ride. As you start to review the geo chart you’ll noticed we have 2 different fork offsets, 3 different BB drops and rear center measurements. Add size specific tubing and you have what we feel is the perfect fit for all sized riders. The reason for this custom geometry is to give you the best fit and the most comfort possible.

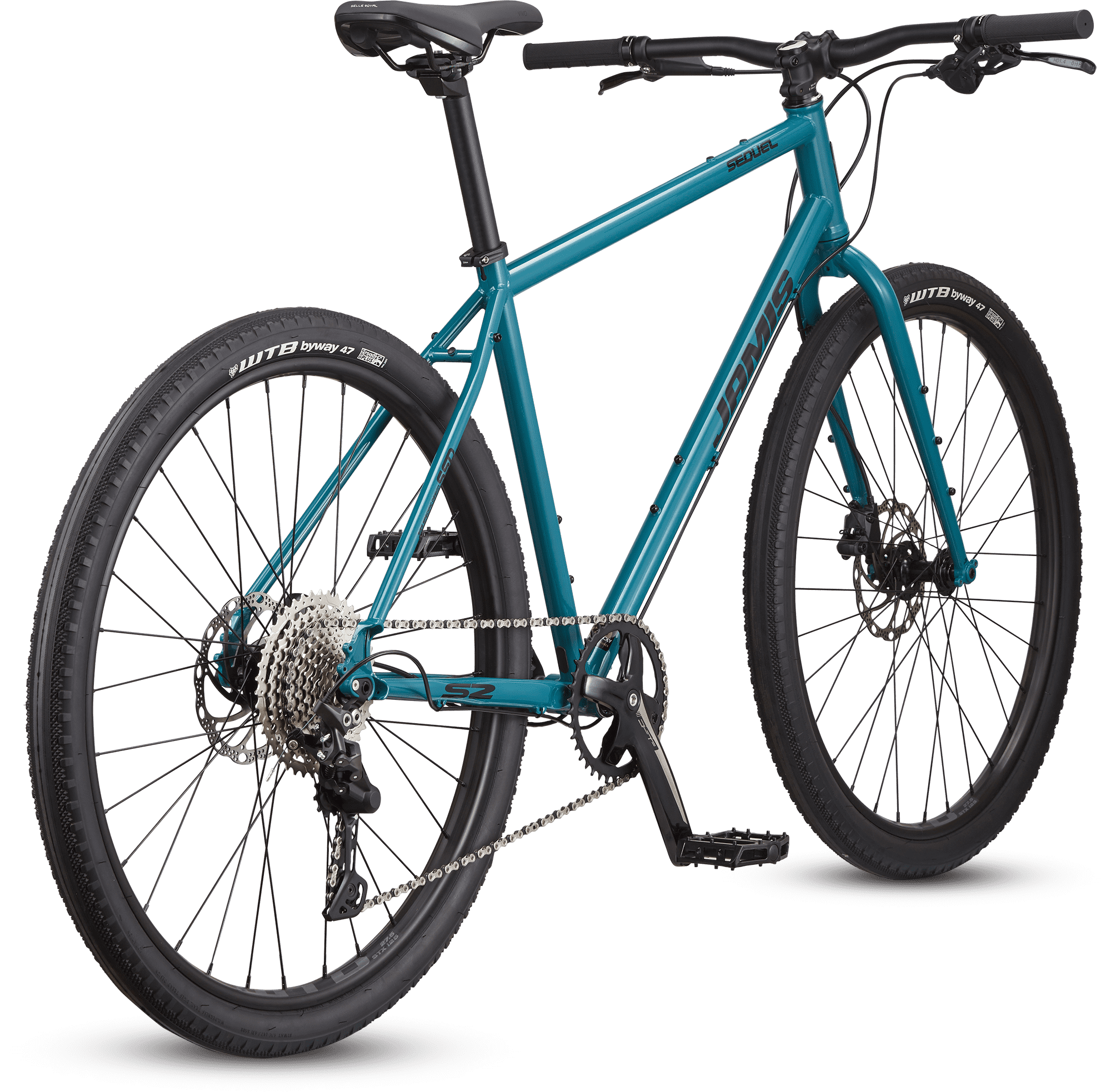

Jamis® Sequel® S2 Riptide® Angle Rear
Jamis® Sequel® Pack Inset

MORE MOUNTS

To make life easier we have positioned each mount externally in a variety of easy-to-use locations. With a wide collection of fork and frame mounts you can now choose to mount fenders, rear carrier, low-rider front carrier (or two cages for water bottles/ storage) and three front triangle water bottles. This will open up the options wherever and whenever you chose to ride. Bad weather, commuting, a short ride to the park or a longer adventure – anything is possible.

Jamis® Sequel® S3 Gloss Black
Gloss Black

SEQUEL S3

RRP: $1149.00

FIND A RETAILER
  • Jamis Size Specific Design, 4130 double-butted chromoly main tubes
  • Jamis Chromoly fork, 12mm thru-axle dropouts
  • WTB ST i25 TCS 2.0 (UST Tubeless Compliant System) disc rims
  • WTB Byway Tire with DNA compound
  • Shimano Altus RapidFire Plus, 9-speed
  • FSA Tempo crankset
  • Tektro HD-M280/281 hydraulic Flat Mount disc brakes
  • Jamis Sport saddle with SL top
SPECS & GEO

Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.

SEQUELS2S3
FrameJamis Size Specific Design frame geometry, Reynolds 520 double-butted chromoly main tubes, threaded BB shell, chain stay flat mount disc brake mounts, 12mm thru-axle, FD mount, dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets, 29.8mm seatpost clampJamis Size Specific Design frame geometry, 4130 double- butted chromoly main tubes, threaded BB shell, chain stay flat mount disc brake mounts, 12mm thru-axle, FD mount, dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets, 29.8mm seatpost clamp
ForkJamis Chromoly fork, 12mm thru-axle dropouts, 45mm crown, flat mount disc brakes, fender, lowrider and water bottle eyeletsJamis Chromoly fork, 12mm thru-axle dropouts, 45mm crown, flat mount disc brakes, fender, lowrider and water bottle eyelets
HeadsetFSA IS3 Internal headset 1 1/8”FSA IS3 Internal headset 1 1/8”
WheelsWTB ST i25 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Formula alloy 6-bolt sealed bearing hubs, 14g black stainless steel spokes and front 12mm/ rear 12×142 thru-axle with Switch LeverWTB STX i25 TCS (UST Tubeless Compliant System) disc rims, 32H, Formula alloy 6-bolt sealed bearing rear hub, 14g black stainless steel spokes and front 12mm/ rear 12×142 thru-axle with Switch Lever
TiresWTB Byway Tire with DNA compound, 650 x 47cWTB Byway Tire with DNA compound, 650 x 47c
DerailleursShimano Deore RD-M4120 GS Shadow Plus rearShimano Altus RD-M2000 SGS Shadow rear
Shift leversShimano Deore RapidFire Plus SL-M4100, 10-speedShimano Altus RapidFire Plus SL-M2010, 9-speed
ChainKMC X10KMC Z9
CassetteShimano CS-M4100, 10-speed, 11-42TShimano CS-HG201, 9-speed, 11-36T
CranksetFSA Vero Pro crank, 40T MegaTooth, 15/17” 165 19/21” 170. 23” 175mmFSA Tempo crank, 42T, 15/17” 165 19/21” 170. 23” 175mm
BB SetFSA sealed cartridge, 68 x 110.5mmFSA sealed cartridge, 68 x 110.5mm
PedalsPlatform style, alloyPlatform style, alloy
BrakesetTektro HD-M280/281 hydraulic Flat Mount disc brakes with 160mm rotors and Tektro brake levers. 15-17” M281 (83mm reach); 19-23” M280 (88mm reach)Tektro HD-M280/281 hydraulic Flat Mount disc brakes with 160mm rotors and Tektro brake levers. 15-17” M281 (83mm reach); 19-23” M280 (88mm reach)
HandlebarJamis Riser bar, aluminum, 10 ̊ sweep, 3ç up sweep, 20mm rise, 31.8 x 680mm (15/17/19”) 700mm (21/23”)Jamis Riser bar, aluminum, 10 ̊ sweep, 3ç up sweep, 20mm rise, 31.8 x 680mm (15/17/19”) 700mm (21/23”)
StemJamis, 3D forged alloy, 3 ̊ rise, Length-40mm (15/17”), 50mm (19/21”), 60mm (23”)Jamis, 3D forged alloy, 3 ̊ rise, Length-40mm (15/17”), 50mm (19/21”), 60mm (23”)
GripsMTB Kraton/Gel Double Density Grip Lock-onMTB Kraton/Gel Double Density Grip 125mm
Seat PostJamis alloy micro-adjust, 27.2 x 350mm alloy clamp with QR seatpinJamis alloy micro-adjust, 27.2 x 350mm alloy clamp with QR seatpin
SaddleSelle Royal Vivo ERGONEW Jamis Sport with SL top
Sizes15”, 17”, 19”, 21”, 23”15”, 17”, 19”, 21”, 23”
ColorMahoganyCharcoal
Weight28.0 lbs28.0 lbs
Jamis® Street Bike Geometry Diagram
MODELSIZETT EFFECTIVEHT ANGLEST ANGLECHAINSTAYWHEELBASEFORK RAKEBB DROPHEADTUBESTANDOVERSTACKREACH
S2, S31521.65 / 55071°74.5°17.13 / 43541.22 / 10472.09 / 532.76 / 703.54 / 9027.80 / 70620.91 / 53115.87 / 403
S2, S31722.95 / 58371°74.5°17 / 44042.76 / 10862.09 / 532.76 / 704.72 / 12029.13 / 74022.01 / 55916.85 / 428
S2, S31923.62 / 60071.5°73°17.52 / 44542.83 / 10881.97 / 502.56 / 655.91 / 15030.59 / 77723.07 / 58616.57 / 421
S2, S32124.21 / 61571.5°73°17.72 / 45043.66 / 11091.97 / 502.56 / 657.09 / 18031.97 / 81224.17 / 61416.81 / 427
S2, S32325.31 / 64371.5°73°17.72 / 45044.88 / 11401.97 / 502.36 / 608.27 / 21033.43 / 84925.12 / 63817.64 / 448
